What Is Diamond Mesh Fence?

Diamond Mesh Fence is a woven wire fencing product made by interlocking steel wires into a continuous diamond-shaped pattern. In many markets, this type of fencing is also commonly known as chain link fence, cyclone fence, or diamond wire mesh.

The name “Diamond Mesh Fence” comes from the shape of the openings formed during the weaving process. Unlike welded wire panels, the wires are woven together, creating a flexible mesh structure that can be supplied in rolls and installed on different types of terrain.

In practical projects, the performance of a Chain Link Fence or Diamond Mesh Fence depends on much more than its appearance. Wire diameter, mesh opening, surface treatment, fence height, installation method, and local environmental conditions all affect the final result.

That is why two rolls of diamond mesh may look similar at first, but perform very differently after installation. The real difference is usually hidden in the wire specification and surface protection.

How Is Diamond Mesh Fence Made?

Diamond Mesh Fence is manufactured by feeding steel wire into a weaving machine. The wires are continuously bent and interlocked to form a diamond-shaped mesh pattern.

Unlike welded wire mesh, the joints are not created by welding each crossing point. The structure is formed through the weaving process, which gives the mesh flexibility and allows it to be rolled for transportation.

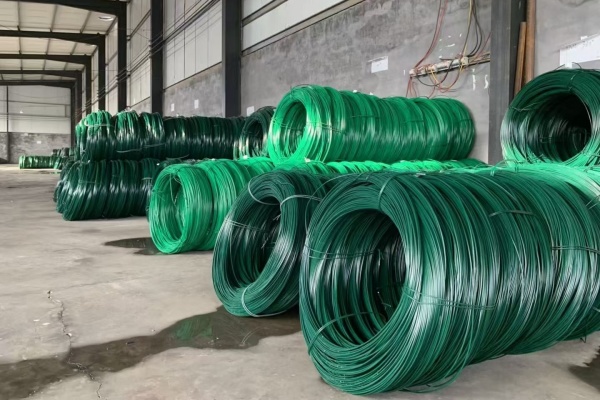

Steel Wire Preparation

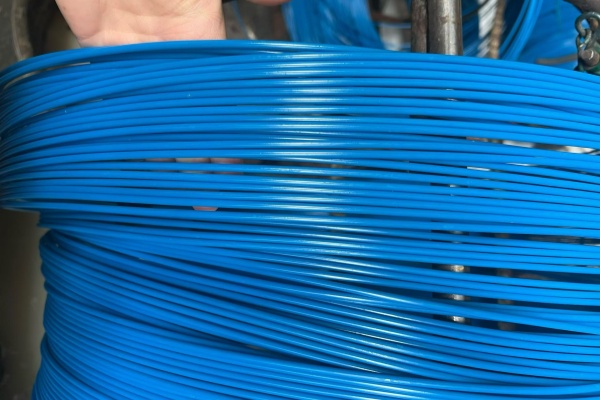

The production process starts with steel wire. The wire can be supplied with different surface treatments depending on the application.

Common options include galvanized wire and coated wire. For example, Galvanized Chain Link Fence uses zinc protection to help improve corrosion resistance in outdoor environments.

Diamond Pattern Weaving

The prepared wire is woven into a continuous diamond pattern. The mesh opening can be adjusted according to the required specification.

Smaller mesh openings provide a denser structure, while larger mesh openings allow greater visibility and airflow. Neither option is automatically better. The correct choice depends on the application.

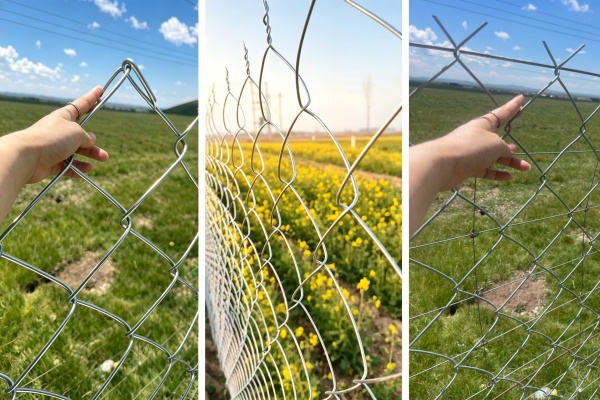

Edge Treatment

After weaving, the edges can be finished in different ways depending on the fence specification and intended use.

The top and bottom of the mesh may use different edge treatments, and this should be confirmed before production, especially for projects where safety or appearance is important.

Common Types of Diamond Mesh Fence

Galvanized Diamond Mesh Fence

Galvanized diamond mesh uses steel wire with zinc protection. It is commonly selected for outdoor fencing projects because of its practical balance between cost, durability, and corrosion resistance.

It can be used for factories, farms, warehouses, storage areas, construction sites, and general property boundaries.

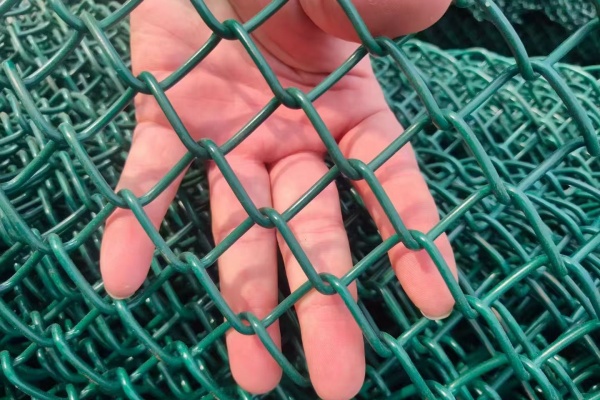

PVC Coated Diamond Mesh Fence

A coated mesh option can be selected when a colored appearance or additional outer surface protection is required.

PVC Coated Chain Link Fence uses the same basic diamond mesh structure while adding a protective outer coating around the wire.

Green and black are common choices for outdoor projects, but the actual performance should be evaluated according to the complete wire and coating specification rather than color alone.

Industrial Diamond Mesh Fence

For factories, warehouses, storage yards, and larger commercial properties, the mesh may be selected with heavier specifications.

An Industrial Chain Link Fence system may use a stronger wire specification, different fence height, and a more substantial post and support structure depending on the project.

Where Is Diamond Mesh Fence Used?

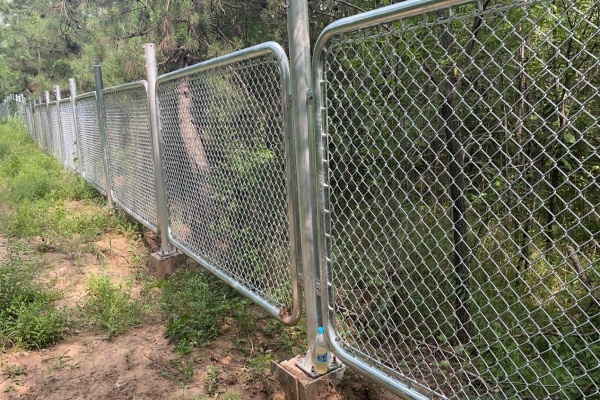

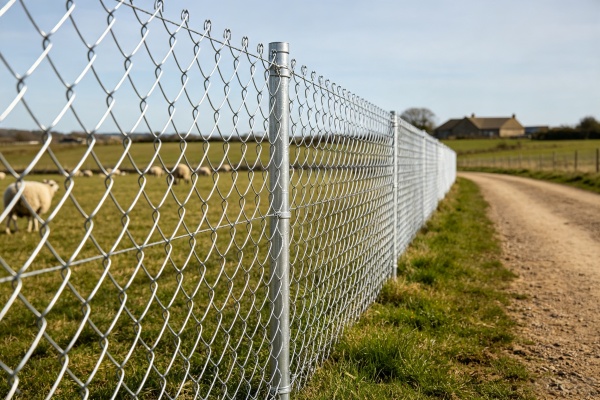

Property Boundaries

Diamond Mesh Fence is commonly used to mark property lines and create a visible physical boundary without blocking the view completely.

The open mesh structure allows people to see through the fence while still providing separation between different areas.

Industrial and Commercial Areas

Factories, warehouses, and commercial properties often require fencing around large areas. Diamond mesh is suitable for these projects because it can be produced in rolls and adapted to different site layouts.

For projects requiring stronger perimeter control, a Security Chain Link Fence specification can be considered based on the required wire diameter, mesh opening, fence height, and support system.

Gardens and Outdoor Areas

Diamond mesh fencing can also be used around gardens, landscaped areas, parks, and residential properties.

The mesh can provide a clear boundary without creating the solid visual barrier of a wall or sheet metal fence.

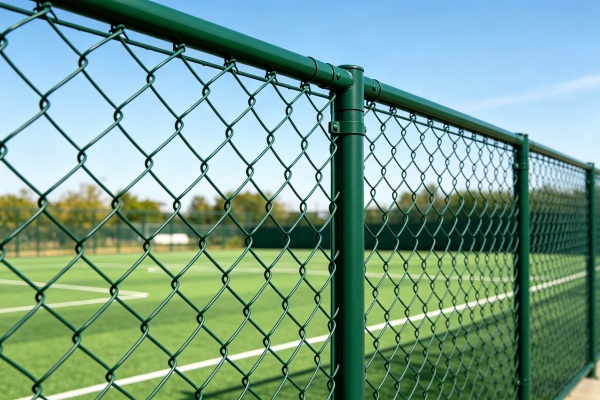

Sports and Recreation Areas

The open structure of diamond mesh makes it suitable for many sports and recreational applications. It can be used to separate activity areas while maintaining visibility and airflow.

How to Choose the Right Diamond Mesh Fence?

1. Start with the Application

The first question should not be “What is your cheapest specification?” The better question is “What does the fence need to do?”

A garden fence, industrial perimeter, sports area, and security project may all use diamond mesh, but they usually require different specifications.

Before choosing the mesh, consider the following:

• What is the fence being used for?
• How high does the fence need to be?
• Does the area require normal separation or stronger security?
• Will the fence be installed indoors or outdoors?
• Is the project located near the coast or in a high-humidity environment?

2. Check the Wire Diameter

Wire diameter is one of the most important specifications because it directly affects the strength of the mesh.

However, buyers should be careful when comparing quotations. For coated mesh, the finished diameter may include the outer coating, while the actual steel core diameter is smaller.

For a fair comparison, it is useful to confirm both the steel core diameter and the finished wire diameter.

3. Select the Mesh Opening

Mesh opening affects appearance, material usage, visibility, and containment.

A smaller opening creates a denser fence and can provide better containment. A larger opening allows more visibility and airflow.

The correct size depends on the purpose of the project rather than simply choosing the smallest or largest available opening.

4. Choose the Surface Treatment

The local environment should influence the surface treatment decision.

For dry environments, a standard galvanized specification may be suitable. In areas with high humidity, heavy rainfall, or coastal exposure, buyers may need to consider a higher level of corrosion protection.

For Southeast Asian projects, this point is particularly important because high temperatures and humidity can affect the long-term performance of outdoor steel products.

Diamond Mesh Fence vs Welded Wire Fence

Diamond Mesh Fence and welded wire fence are both used for boundary and protection projects, but their structures are different.

Diamond mesh is made by weaving the wire into an interlocking pattern. This gives the material flexibility and allows it to be supplied in rolls.

Welded wire fence is made by joining wires at their crossing points, creating a more rigid structure that is often supplied as panels or sheets.

The better choice depends on the project. If flexibility and adaptability to different ground conditions are important, woven diamond mesh can be a practical option. If a rigid panel structure is required, welded fencing may be more suitable.

Custom Sizes and Specifications

Diamond Mesh Fence can be produced according to different project requirements.

• Different wire diameters
• Different mesh openings
• Customized fence heights
• Different roll lengths
• Galvanized wire options
• PVC coated wire options
• Different colors
• Different edge treatments
• Customized specifications for posts and installation systems

For larger projects, it is better to provide a complete specification before production. The fence height alone is not enough to determine the correct product.

A clear inquiry should include wire diameter, mesh opening, height, roll length, surface treatment, quantity, and installation environment whenever possible.

Maintenance Tips for Diamond Mesh Fence

Diamond Mesh Fence generally requires limited maintenance, but regular inspection can help prevent small issues from becoming larger problems.

• Check the mesh for cuts or deformation.
• Inspect the wire surface for damage or corrosion.
• Check posts and tension components.
• Remove vegetation growing into the mesh.
• Inspect the fence after strong winds or heavy rainfall.
• Repair damaged sections as soon as possible.

For outdoor projects in humid or coastal environments, regular inspection of the surface condition is especially useful.

Frequently Asked Questions About Diamond Mesh Fence

Is Diamond Mesh Fence the same as Chain Link Fence?

In many markets, Diamond Mesh Fence refers to the same basic type of woven diamond-shaped fencing commonly known as Chain Link Fence. However, product names can vary depending on the country and local industry terminology.

What wire diameter should I choose?

The correct wire diameter depends on the fence height, mesh opening, application, and required level of strength. It is better to select the specification based on the actual project rather than using one standard size for every application.

Can Diamond Mesh Fence be used outdoors?

Yes. Outdoor performance depends on the wire material and surface treatment. Galvanized and coated options can be selected according to the environmental conditions of the project.

Can the mesh size and height be customized?

Yes. Diamond Mesh Fence can be manufactured with different wire diameters, mesh openings, heights, roll lengths, and surface treatments according to project requirements.

Related Chain Link Products

• Chain Link Fence
• Galvanized Chain Link Fence
• PVC Coated Chain Link Fence
• Industrial Chain Link Fence
• Security Chain Link Fence

Conclusion

Diamond Mesh Fence is a flexible and practical woven wire fencing solution used for residential, commercial, industrial, agricultural, and recreational applications.

Although the product may look simple, the correct specification should always be selected according to the actual project. Wire diameter, mesh opening, fence height, surface treatment, support structure, and installation environment all influence the final performance.

For projects in Southeast Asia, environmental conditions should be considered carefully. High humidity, strong rainfall, heat, and coastal exposure can all affect outdoor steel fencing over time. Choosing the correct material and surface treatment from the beginning can help improve durability and reduce unnecessary maintenance later.
