PVC Chain Link Fence is a type of woven wire fence made from steel wire with a protective PVC coating on the surface. The coating gives the fence a clean appearance while adding another layer of protection against moisture, rain, sunlight, and outdoor exposure. Compared with traditional uncoated steel wire, PVC-coated wire is better suited to many residential, commercial, sports, and outdoor applications where both appearance and corrosion protection are important.
The basic structure is still the familiar diamond-shaped chain link pattern. The difference is that the steel wire is covered with a layer of PVC material before or during the fence manufacturing process. The final coated wire is then woven into the required mesh opening and fence height.
For buyers working in humid and rainy regions such as Southeast Asia, understanding the wire core, PVC coating, mesh size, and coated wire diameter is important because these details directly affect the service performance of the finished fence.
The manufacturing process normally starts with steel wire selected according to the required strength and diameter. Depending on the application, the steel core may be galvanized before PVC coating. This provides protection both from the metal core and from the outer coating.
After the wire is prepared, a PVC layer is applied to the surface. The coating needs to have good adhesion and a reasonably uniform thickness so that the finished wire can withstand normal bending, weaving, transportation, and outdoor use.
The coated wire is then woven into a diamond mesh. The mesh opening, wire diameter, fence height, and roll length can be produced according to the project requirements. The edges can also be finished in different ways depending on installation requirements and local preferences.

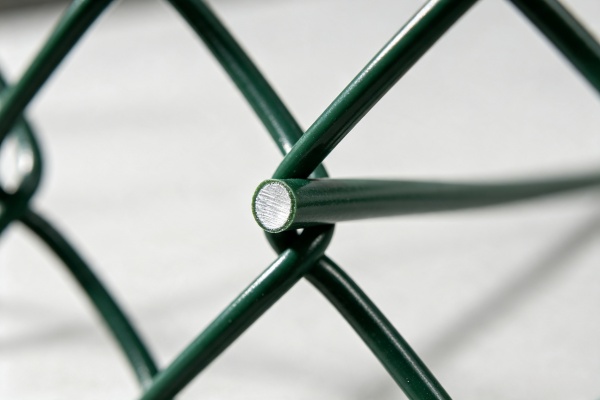

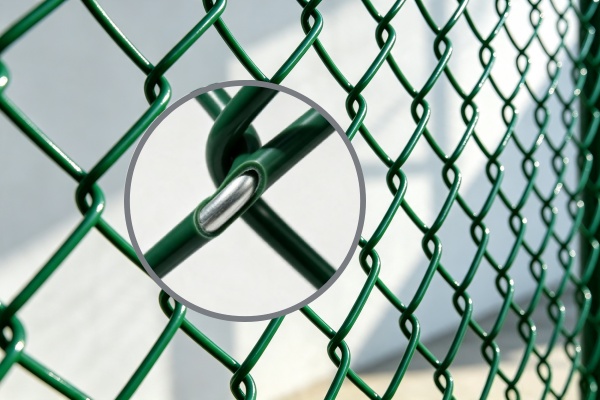

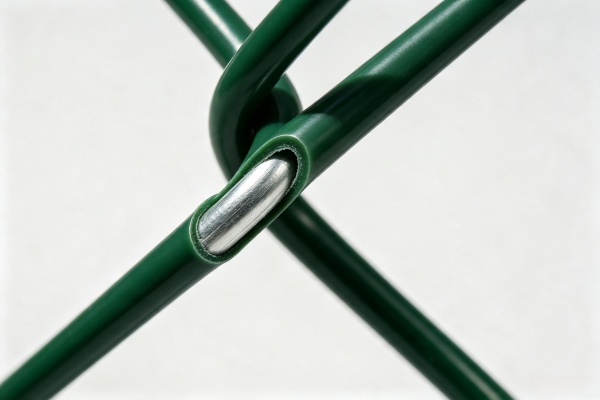

A typical PVC Chain Link Fence can be understood as a combination of a steel wire core and an outer protective coating. The steel core provides the main mechanical strength, while the PVC layer provides surface protection and color.
The wire core determines much of the fence's tensile strength and resistance to deformation. A suitable wire diameter should be selected according to the fence height, mesh opening, installation method, and expected use.
For outdoor applications, galvanized steel wire is commonly used as the core because zinc provides additional protection to the steel. This combination can be useful in areas with frequent rain or high humidity.
For comparison, Galvanized Chain Link Fence relies on its zinc coating as the primary protective layer, while PVC Chain Link Fence adds an external polymer coating to the wire surface.
The PVC coating protects the underlying wire from direct contact with moisture and the surrounding environment. It also gives the fence its visible color and can make the surface smoother to the touch.
Coating quality is important. A coating that is uneven, too thin, or poorly bonded may reduce the expected service performance of the fence. For this reason, buyers should consider both the steel wire specification and the quality of the PVC coating rather than looking only at the overall coated diameter.

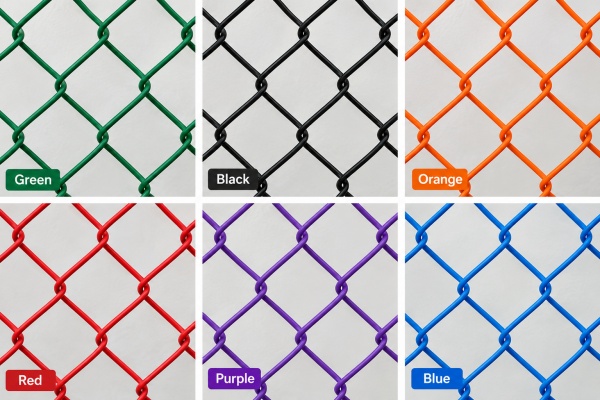

Green and black are two commonly requested colors for PVC-coated chain link fencing. Green is often selected for gardens, sports areas, landscaping, and general perimeter fencing because it blends relatively well with outdoor surroundings.
Black provides a more neutral and modern appearance and can be used for residential, commercial, recreational, and architectural applications.
Other colors may also be available for projects with specific visual requirements. When choosing a color, it is useful to consider the surrounding environment, the purpose of the fence, and whether replacement sections will need to match the original installation.
There is no single specification suitable for every project. PVC Chain Link Fence is normally selected according to several basic parameters.

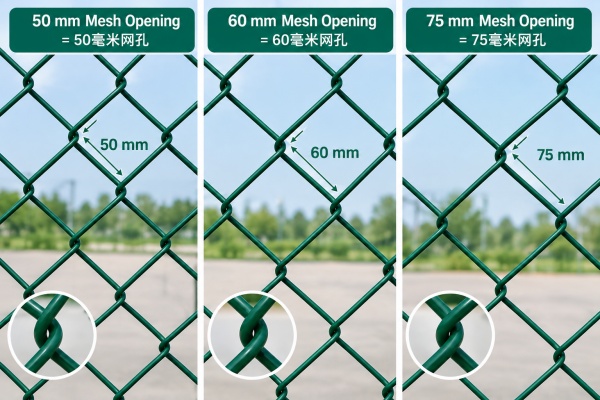

The mesh opening describes the distance between the wires and affects visibility, security, material consumption, and overall appearance. Common openings include 25 mm, 40 mm, 50 mm, 60 mm, and larger sizes depending on the application.

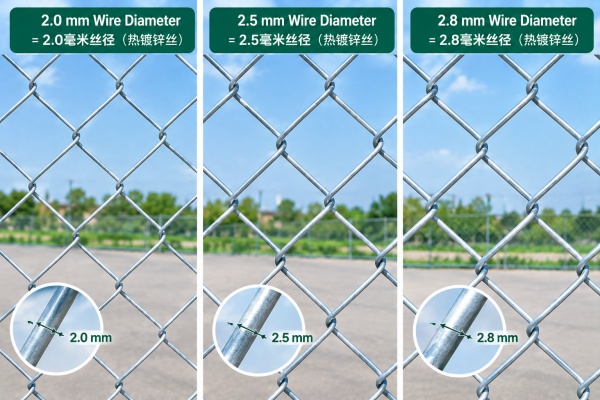

Wire diameter should be considered together with the mesh opening. A smaller mesh with a suitable wire diameter can provide a more compact structure, while larger mesh openings may be selected when visibility and material efficiency are more important.
For PVC-coated wire, buyers should distinguish between the steel core diameter and the finished coated wire diameter. These are two different measurements and should both be clearly specified when requesting a quotation or confirming an order.

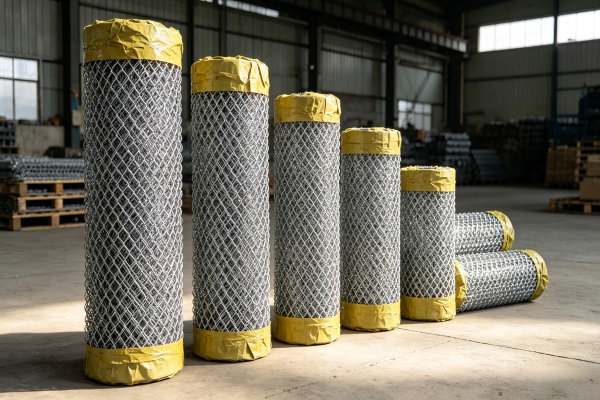

Common fence heights vary according to the application, while roll lengths can also be customized. Before ordering, it is useful to confirm whether the quoted dimensions refer to the finished PVC-coated wire and finished mesh or only to the steel core.
One of the main reasons to use PVC-coated chain link fencing is its combination of practical performance and appearance. The outer coating helps reduce direct exposure of the steel wire to moisture and can provide useful protection in normal outdoor conditions.
In humid regions, regular rain and high atmospheric moisture can accelerate corrosion on exposed steel. A properly manufactured PVC-coated fence can provide an additional protective barrier, especially when the underlying wire also has suitable galvanization.
Sunlight is another factor to consider. For long-term outdoor use, the quality and formulation of the PVC coating matter because continuous UV exposure can affect the appearance and physical properties of inferior coatings.
Both PVC-coated and galvanized chain link fencing are widely used outdoors, but their construction and appearance are different.
Galvanized Chain Link Fence has a zinc coating on the steel wire and normally has a metallic silver-gray appearance. It is often selected for applications where a simple metal finish and corrosion protection are required.
PVC Chain Link Fence has an additional polymer coating over the wire. It provides more color options and a different surface appearance, while also adding another barrier between the steel core and the surrounding environment.
For buyers who want to understand the wider range of chain link structures and materials, Chain Link Mesh provides a useful overview of common chain link configurations.

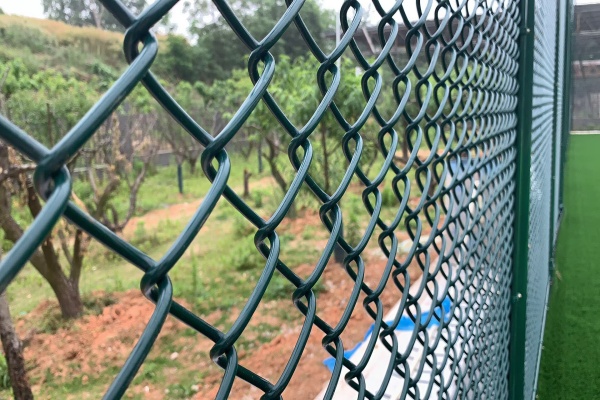

PVC Chain Link Fence can be used in many situations where a flexible, open-style fence is preferred.
It can be used around houses, gardens, yards, and community properties. The open diamond structure provides visibility while creating a clear boundary.
PVC-coated fencing is commonly suitable for sports areas where appearance and outdoor durability are both important. Depending on the project, the mesh opening and wire diameter can be selected according to the sport and required level of enclosure.
It can also be used around warehouses, factories, storage yards, parking areas, and other commercial properties. In these applications, fence height, wire diameter, and post structure should be selected according to the required level of protection.
For some agricultural and general outdoor applications, PVC-coated chain link can provide a practical perimeter solution. The exact specification should be selected according to the animals, terrain, and required fence strength.
Southeast Asian environments often involve high humidity, heavy rainfall, strong sunlight, and in some locations exposure to coastal salt air. These conditions make material selection particularly important.
First, confirm the steel core material and whether the wire is galvanized before PVC coating. Second, check the finished coated wire diameter rather than relying on a single diameter figure. Third, confirm the mesh opening and fence height according to the actual installation.
For coastal or highly humid areas, it is also worth paying attention to coating quality, zinc protection, PVC adhesion, and edge treatment. A lower initial material specification may not provide the same long-term performance as a properly matched wire and coating system.
A good fence depends not only on the mesh but also on the supporting structure. Posts should be installed securely and spaced according to the fence height and site conditions. The mesh should be tensioned evenly during installation without excessive pulling that could damage the coating or deform the mesh.
When cutting or connecting the mesh, care should be taken to avoid unnecessary damage to the PVC surface. Any exposed steel areas created during installation should be checked and treated appropriately when required by the project specification.
For projects requiring different mesh structures or woven configurations, Woven Wire Mesh Fence can also be considered as part of the overall fencing solution.
PVC Chain Link Fence can be customized according to project requirements. Common customization points include mesh opening, steel core diameter, finished coated diameter, fence height, roll length, PVC color, edge finish, and packaging.
For larger projects, it is useful to provide a complete specification before production. This helps avoid misunderstandings between core wire diameter and finished coated diameter and makes it easier to match the fence mesh with posts, tension wire, fittings, and other installation components.
PVC-coated chain link fencing normally requires relatively simple maintenance. Periodic visual inspection can help identify damaged coating, loose mesh, bent posts, or areas affected by impact.
Dust, mud, and other deposits can be removed with clean water and a suitable mild cleaning method. Avoid aggressive tools or chemicals that may damage the PVC surface.
If the fence is installed near the sea or in an area with heavy salt exposure, more frequent inspection is recommended. Pay particular attention to cut edges, connection points, posts, and fittings because these areas may experience different exposure conditions from the coated mesh itself.
Yes. It is commonly used outdoors, including residential, commercial, sports, and perimeter applications. The actual service performance depends on the steel core, coating quality, specification, installation, and environmental conditions.
Galvanizing uses a zinc coating to protect steel, while PVC coating adds a polymer layer to the wire surface. Some chain link fences combine galvanized steel wire with PVC coating to provide protection from both the zinc layer and the outer polymer coating.
Yes. Mesh size, wire diameter, fence height, roll length, color, edge finish, and other specifications can be customized according to project requirements.
PVC Chain Link Fence combines a steel wire structure with an outer PVC protective layer, providing a practical balance of strength, corrosion protection, appearance, and flexibility. The right choice depends on the steel core, coating quality, mesh opening, wire diameter, fence height, color, and installation environment.
For humid and rainy regions, especially in Southeast Asia, buyers should look beyond the visible color and overall coated diameter. Checking the complete wire and coating specification is a more reliable way to select a fence suitable for long-term outdoor use.
