Chain Link Wire Mesh is a woven steel wire fencing material formed by interlocking wires into a continuous diamond-shaped pattern. It is widely used for property boundaries, industrial facilities, warehouses, farms, construction sites, sports areas, gardens, and general perimeter fencing.
The open structure of Chain Link Wire Mesh makes it different from solid fence panels. It provides a clear physical boundary while allowing air and light to pass through. It also maintains good visibility, which can be useful for locations where the surrounding area needs to remain visible after the fence is installed.
Chain Link Wire Mesh can be produced in different wire diameters, mesh openings, heights, roll lengths, and surface treatments. Galvanized steel wire is commonly selected for general outdoor applications, while PVC-coated wire can provide additional surface protection and a choice of colors.

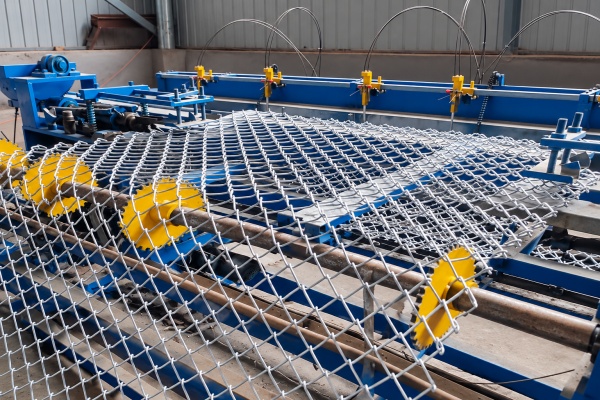

The manufacturing process starts with steel wire prepared according to the required diameter and surface treatment. The wire is fed into a chain link weaving machine and formed into spiral-shaped sections.

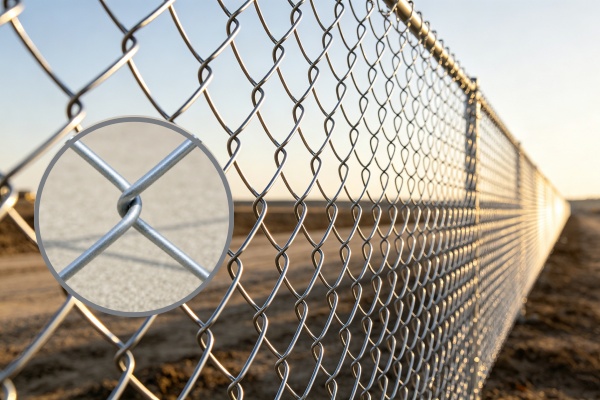

Each spiral is interlocked with the next wire during the weaving process. This creates the continuous diamond pattern that gives Chain Link Wire Mesh its characteristic appearance and flexibility.
After weaving, the mesh edges can be finished as knuckled or twisted edges. The appropriate edge style depends on the application, safety requirements, and customer preference.
A reliable production process should maintain consistent mesh openings and stable wire tension throughout the roll. Finished mesh should also be checked for wire diameter, mesh size, roll length, surface coating, edge finish, and overall appearance before shipment.

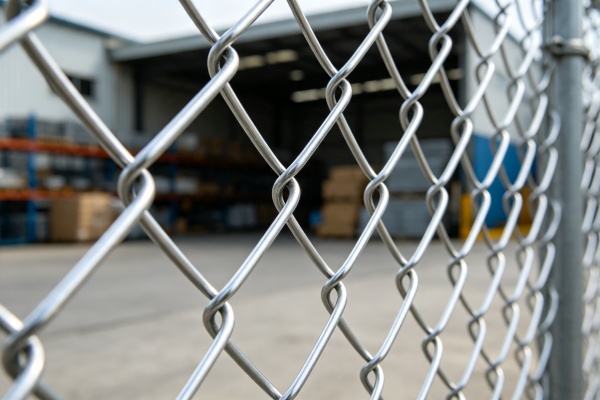

Galvanized steel wire is one of the most widely used materials for Chain Link Wire Mesh. The zinc coating provides protection for the steel wire against moisture and outdoor corrosion.
For general fencing projects, galvanized wire offers a practical balance of strength, durability, and cost. However, when comparing different products, buyers should consider both the wire diameter and the level of zinc coating.
For projects requiring galvanized fencing, Galvanized Chain Link Fence is a suitable option for many industrial, commercial, agricultural, and residential applications.

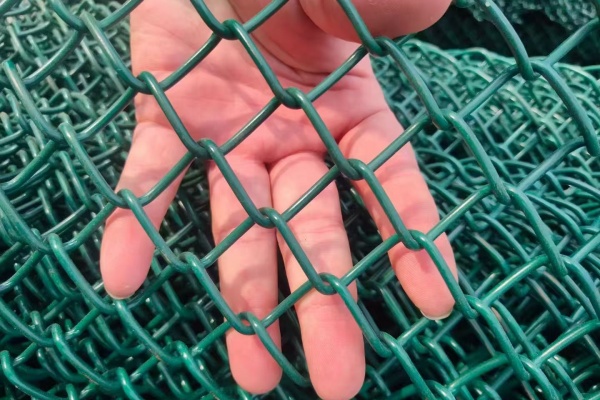

PVC-coated Chain Link Wire Mesh is manufactured by covering a steel wire core with a protective PVC layer. The coating provides an additional barrier against environmental exposure and can improve the visual appearance of the fence.
Green and black are common colors for PVC-coated fencing. They are often selected for gardens, sports facilities, residential properties, landscaping projects, and other outdoor areas where the fence should blend with its surroundings.
For projects where both appearance and additional surface protection are important, PVC Coated Chain Link Fence is another practical choice.
The correct specification depends on the application and required performance. There is no single mesh size or wire diameter suitable for every project.
Mesh opening and wire diameter should be considered together. A smaller opening creates a denser mesh, while a heavier wire generally provides greater strength and rigidity. The best combination depends on the purpose of the fence.
The basic structure of Chain Link Wire Mesh is simple: steel wires are woven together to create diamond-shaped openings. However, the performance of the finished fence also depends on how the mesh is supported.
A complete chain link fencing system normally includes the mesh together with steel posts, tension wire, tension bars, clamps, gates, and other accessories.
For higher fences or applications exposed to greater loads, the supporting structure should be selected carefully. Strong mesh cannot compensate for weak posts or poor installation.
For a complete fencing solution, Chain Link Fence can be designed with suitable supporting posts and accessories according to the site conditions.
Factories, warehouses, logistics yards, storage areas, and commercial properties use Chain Link Wire Mesh to define boundaries and control access.
For heavier-duty applications, Industrial Chain Link Fence can be selected with suitable wire diameter, fence height, and support structure.

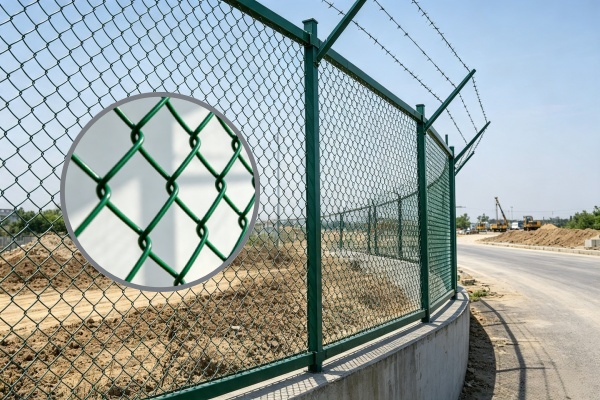

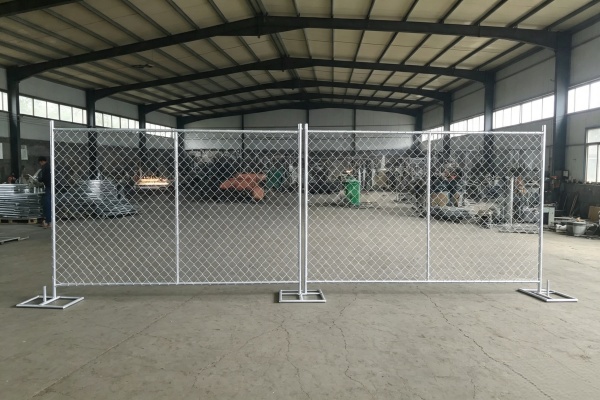

Chain Link Wire Mesh is useful for temporary or long-term construction site fencing. It can help separate working areas, storage zones, equipment areas, and restricted sections from surrounding spaces.

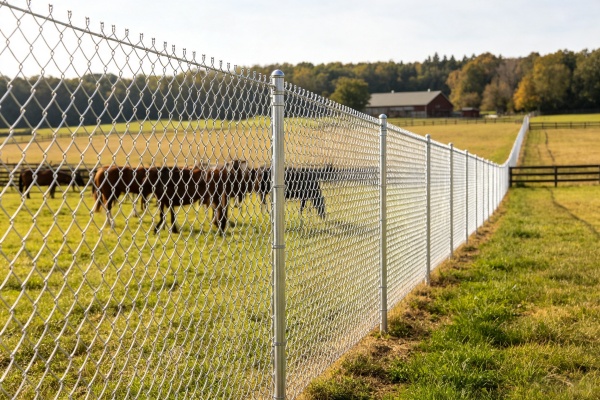

Farms can use chain link mesh around property boundaries, equipment storage areas, service yards, and selected agricultural zones. Its open structure allows ventilation and visibility while creating a practical barrier.

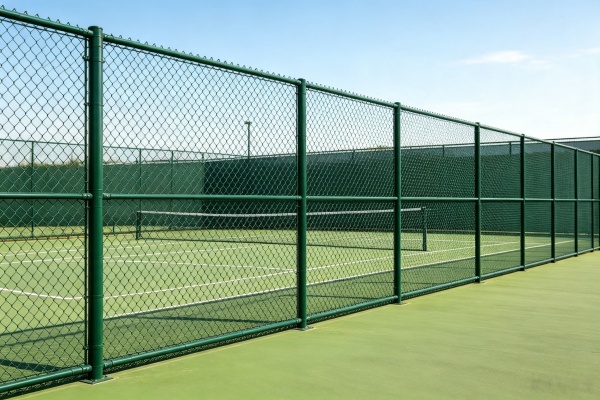

Sports facilities require fencing that can provide protection without completely blocking visibility. Chain link mesh is commonly used around sports fields, training areas, tennis facilities, and recreational spaces.

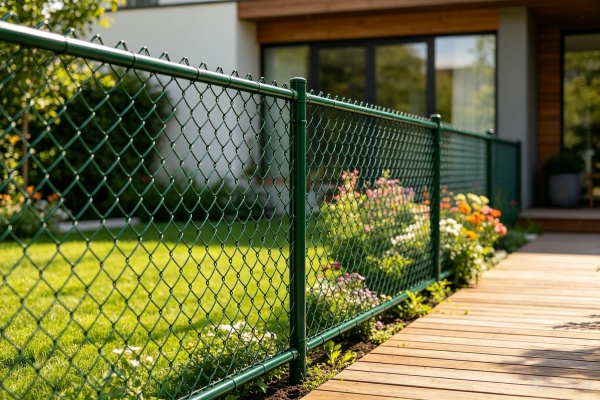

For residential yards, gardens, and landscaped areas, Chain Link Wire Mesh provides a simple and economical boundary. PVC-coated versions can offer a more decorative appearance when required.
The application should be the starting point for product selection. A garden fence, industrial perimeter, construction fence, and sports fence may all require different specifications.
Wire diameter affects the strength, rigidity, weight, and durability of the mesh. A heavier wire is generally more suitable when the fence needs to withstand greater physical stress.
Mesh opening affects the density of the barrier, visibility, airflow, and material usage. Smaller openings provide a denser barrier, while larger openings provide greater visibility and ventilation.
The surface treatment should match the installation environment. Galvanized wire is widely used for general outdoor projects, while PVC-coated wire can provide an additional protective layer and colored appearance.
Outdoor fencing may be exposed to rain, humidity, sunlight, dust, temperature changes, and salt air. The local environment should therefore be considered when selecting the wire and coating.
Many Southeast Asian markets have hot, humid, and rainy conditions. Coastal areas may also expose fencing to salt air, which can increase the risk of corrosion.
For these environments, buyers should pay attention to the quality of the galvanized coating or PVC coating. The protection of posts, clamps, tension wires, and other accessories should also be considered because the complete fencing system is only as durable as its weakest exposed component.
Regular inspection is especially useful in coastal and high-humidity locations. Early detection of damaged coating, loose connections, or corrosion can help reduce maintenance costs later.

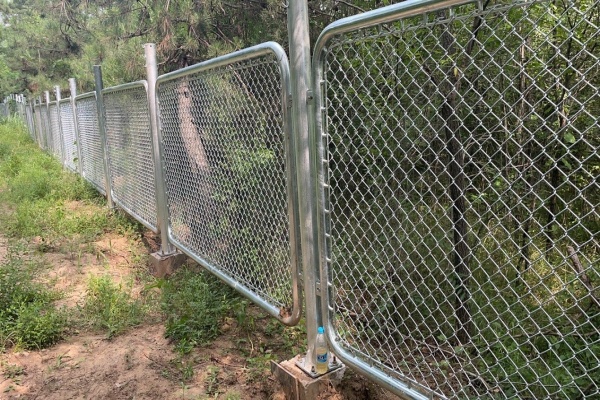

Proper installation is essential for maintaining the shape and stability of the mesh. Before installation, the fence line should be measured and the positions of end posts, corner posts, and line posts should be determined.
Posts should be firmly installed because they support the tension of the mesh. The mesh should then be attached and stretched evenly along the fence line.
Over-tensioning can distort the diamond openings, while insufficient tension can leave the mesh loose. The goal is to achieve a firm and even surface without changing the intended mesh pattern.
The bottom clearance should also be considered according to the site. Avoiding unnecessary contact with wet soil can help reduce long-term exposure to moisture.
Chain Link Wire Mesh can be customized for different fencing projects. Depending on the manufacturer's production capability, customers can specify:
For large orders, it is important to confirm the complete specification before production. This includes mesh opening, wire diameter, surface treatment, roll dimensions, quantity, packaging, and required accessories.
Chain Link Wire Mesh is relatively easy to maintain. A simple inspection schedule can help identify problems before they affect the entire fencing system.
Fences installed near the coast or in areas with high humidity may require more frequent inspection than fences installed in dry inland environments.
It is used for property boundaries, industrial sites, warehouses, farms, construction areas, sports facilities, residential properties, gardens, and many other fencing applications.
Yes. Its strength depends on factors such as wire diameter, steel quality, mesh opening, weaving quality, and the supporting structure. A properly selected and installed system can provide reliable long-term fencing performance.
Both can be suitable. Galvanized mesh is widely used for general outdoor fencing, while PVC-coated mesh adds a protective layer and provides a colored finish. The better choice depends on the environment, appearance requirements, and project budget.
Yes. Mesh opening, wire diameter, height, roll length, edge finish, surface treatment, and color can be customized according to project requirements.
Chain Link Wire Mesh is a practical woven fencing material that combines flexibility, strength, visibility, airflow, and relatively simple installation. It can be used for industrial, commercial, agricultural, sports, construction, residential, and garden fencing.
The right product should be selected according to the application, wire diameter, mesh opening, surface treatment, fence dimensions, supporting structure, and local environmental conditions.
For humid and coastal areas, including many locations in Southeast Asia, choosing suitable galvanized or PVC-coated wire and protecting the complete fencing system can help improve long-term performance. With the correct specification and proper installation, Chain Link Wire Mesh can provide a reliable and economical fencing solution for many years.
