Industrial Chain Link Fence is a heavy-duty woven wire fencing solution designed for factories, warehouses, storage yards, construction areas, utility facilities, and other commercial or industrial properties.
Compared with a standard residential fence, an industrial fencing project usually has different requirements. The fence may need to cover a larger perimeter, handle more frequent impact, work with security systems, or remain stable in demanding outdoor environments.
The basic structure is still similar to a traditional Chain Link Fence. Steel wire is woven into a continuous diamond-shaped mesh, then installed together with posts, rails, tension wires, gates, and other supporting components.
The difference is mainly in the specification. For industrial applications, wire diameter, mesh opening, fence height, surface treatment, and supporting structure are usually selected according to the actual security and environmental requirements of the project.
Industrial properties often need a fencing system that can cover large areas without completely blocking visibility or airflow. Chain link mesh provides a practical balance between physical separation, visibility, and material efficiency.
For many projects, the biggest advantage is flexibility. The same basic woven mesh structure can be produced in different specifications depending on whether the fence is being used for simple boundary separation or a more demanding perimeter protection system.
The woven mesh is the main part of the fencing system. Industrial applications usually require the wire diameter and mesh opening to be selected according to the expected level of physical protection.
A thicker wire generally provides greater strength and resistance to impact. However, using the thickest wire for every project is not always necessary. The correct specification should be selected according to the application, fence height, and surrounding environment.
Posts support the entire fencing system. The post size, wall thickness, spacing, and installation method should match the height and weight of the fence.
For longer industrial fences, properly designed corner posts and end posts are particularly important because these locations carry additional tension from the stretched mesh.
Tension wires help keep the mesh properly stretched and reduce excessive movement. Depending on the fence design, top rails or additional support rails may also be used.
A well-installed Industrial Chain Link Fence is not only about the mesh itself. The complete system, including posts and tension components, has a major effect on long-term stability.
For many industrial projects, galvanized wire is a practical choice because the zinc coating provides corrosion protection while keeping the traditional metallic appearance of the fence.
Galvanized Chain Link Fence can be suitable for factories, warehouses, storage yards, and other applications where appearance is not the main priority and a durable outdoor fencing material is required.
Some industrial projects prefer a coated surface when additional environmental protection or a specific appearance is required.
For example, PVC Coated Chain Link Fence can provide a colored outer surface while maintaining the same basic diamond mesh structure.
The actual coating specification should always be confirmed before production, especially for projects located in high-humidity or coastal environments.
Industrial fencing should be selected based on the actual project instead of simply choosing a standard mesh specification. Before ordering, it is useful to review several important points.
Fence height depends on the purpose of the project. A simple property boundary may require a lower fence, while warehouses, industrial facilities, and restricted areas may need a higher perimeter.
The required height should also be considered together with the post and support system. Increasing fence height without upgrading the supporting structure can reduce overall stability.
Wire diameter has a direct effect on the strength of the mesh. Thicker wire generally provides greater resistance to deformation and impact.
However, buyers should confirm whether the quoted diameter refers to the steel core or the finished wire diameter after surface coating. This is particularly important when comparing coated fencing products.
Mesh opening affects both security and material usage.
Smaller openings can provide better containment and make it more difficult for objects to pass through the fence. Larger openings provide better visibility and airflow.
The best option depends on whether the fence is being used for general boundary marking, equipment protection, restricted access, or higher-security perimeter applications.
Industrial fencing in Southeast Asia may be exposed to high temperatures, heavy rainfall, humidity, and in coastal areas, salt in the air.
These environmental conditions should be considered when selecting wire material and surface treatment. A fence that performs well in a dry inland location may require additional corrosion protection in a tropical coastal environment.

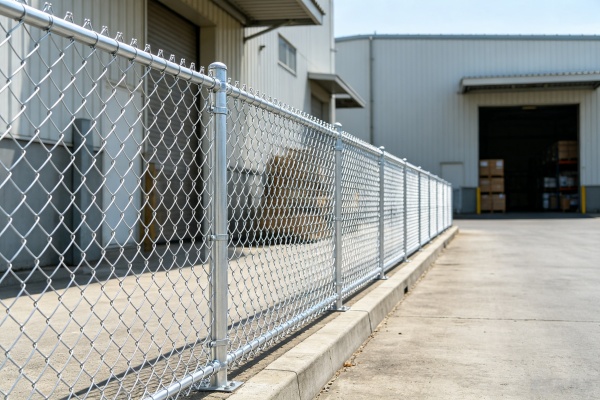

Factories often use Industrial Chain Link Fence to separate production areas, storage zones, equipment locations, and property boundaries.
The open mesh design allows supervisors and security personnel to maintain visibility while still creating a physical barrier.

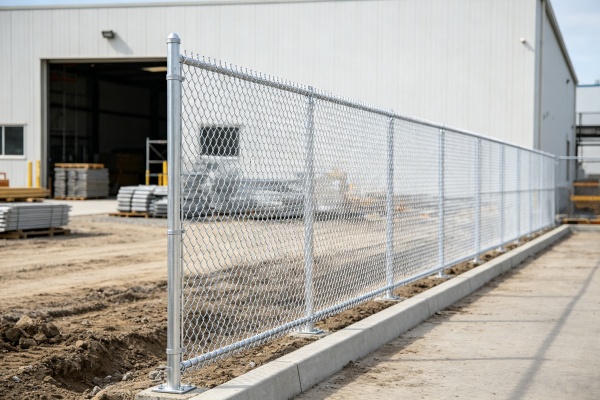

Warehouses may use chain link fencing to create separate storage areas or protect the perimeter of the property.
Different sections can also be divided internally to control access to equipment, materials, or restricted zones.
Temporary or permanent chain link fencing can be used around construction areas to separate working zones and help control access.
The final specification should depend on whether the fence is intended for short-term site separation or long-term perimeter protection.
Industrial fencing can also be used around utility facilities, equipment areas, and infrastructure projects where access needs to be controlled while maintaining visibility around the site.
Although galvanized fencing is common for industrial applications, colored fencing may also be selected when appearance or environmental integration is important.
Black Chain Link Fence can provide a darker and more neutral appearance, making it suitable for some commercial and industrial properties.
Green Chain Link Fence may be more suitable for industrial facilities located near landscaped areas, parks, agricultural zones, or locations where the fence needs to blend more naturally into the environment.
Industrial Chain Link Fence can be customized according to the requirements of different projects.
Before production, it is recommended to confirm the complete specification rather than providing only the fence height. A clear specification sheet should include wire diameter, mesh opening, fence height, roll length, surface treatment, post requirements, and expected application.
Industrial fencing is usually designed for long-term use, but regular inspection is still recommended.
For factories and industrial facilities, scheduled inspection is often more efficient than waiting until visible damage affects the fencing system.
There is no single specification suitable for every industrial project. The correct wire diameter depends on fence height, mesh opening, security requirements, and the expected installation environment.
Yes, but the surface treatment should be selected carefully. Coastal environments may require a higher level of corrosion protection because of humidity and salt exposure.
Yes. Industrial Chain Link Fence can be produced in different heights according to project requirements. The supporting posts and installation system should also be designed to match the selected height.
Industrial Chain Link Fence is a flexible solution for factories, warehouses, construction sites, storage yards, and other large perimeter projects.
The key to choosing the right system is not simply selecting a heavy mesh. Wire diameter, mesh opening, fence height, surface treatment, posts, tension components, and installation conditions should all work together.
For industrial projects in Southeast Asia, environmental conditions deserve special attention. High humidity, strong rainfall, high temperatures, and coastal exposure can all affect the long-term performance of steel fencing. Selecting the right specification at the beginning can reduce maintenance requirements and help the fencing system remain stable throughout its service life.
