Chain Link Fence Mesh is a woven steel wire mesh widely used for perimeter fencing, property boundaries, industrial sites, farms, sports facilities, construction areas, and residential properties. Its characteristic diamond-shaped openings are created by interlocking steel wires, producing a flexible fence material that is easy to handle, install, and adapt to different site conditions.
Unlike solid fence panels, Chain Link Fence Mesh provides a clear boundary while maintaining good visibility and airflow. This simple structure makes it a practical choice for projects where security, ventilation, and cost need to be considered at the same time.
Depending on the application and environmental conditions, Chain Link Fence Mesh can be manufactured from galvanized steel wire or PVC-coated steel wire. Customers can also specify the mesh opening, wire diameter, height, roll length, edge finish, and color according to project requirements.

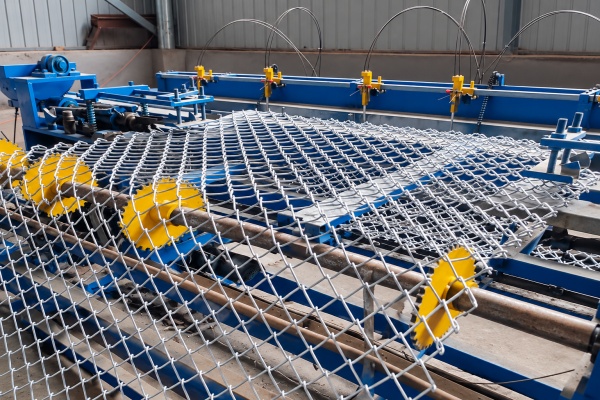

The production of Chain Link Fence Mesh begins with steel wire selected according to the required diameter and surface treatment. The wire is fed into a chain link weaving machine, where it is formed into continuous spiral shapes.
Each spiral is interlocked with the next wire to create the familiar diamond-shaped mesh. The weaving process must be controlled carefully to maintain consistent mesh openings and stable tension throughout the roll.
After weaving, the edges can be finished in different ways. Knuckled edges provide a smoother finish, while twisted edges can offer additional rigidity and are often selected for certain security or industrial applications.
Before shipment, the finished mesh should be checked for wire diameter, mesh size, roll dimensions, coating condition, edge finish, and overall weaving quality. Consistent production helps make installation easier and gives the finished fence a cleaner appearance.

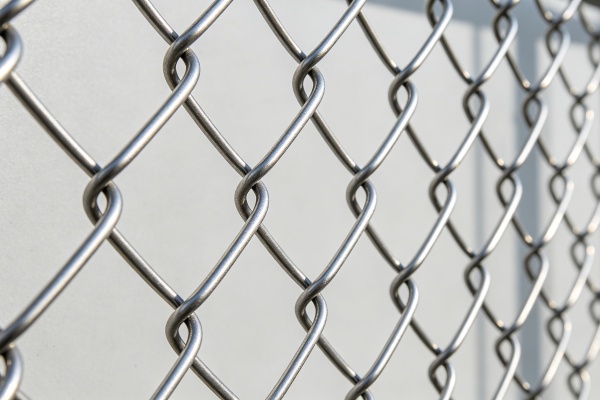

Galvanized steel wire is one of the most common materials used for Chain Link Fence Mesh. The zinc coating helps protect the steel core from moisture and corrosion during outdoor exposure.
For general outdoor fencing, galvanized wire provides a practical combination of strength, durability, and cost. However, buyers should consider both the wire diameter and zinc coating when comparing different products.
For projects that require a conventional galvanized fencing solution, Galvanized Chain Link Fence is a commonly used option for industrial, commercial, agricultural, and residential applications.

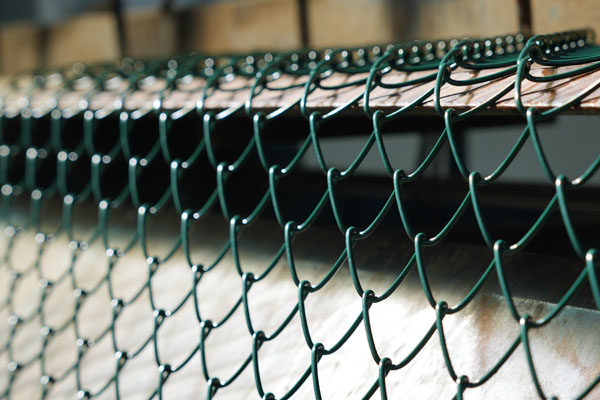

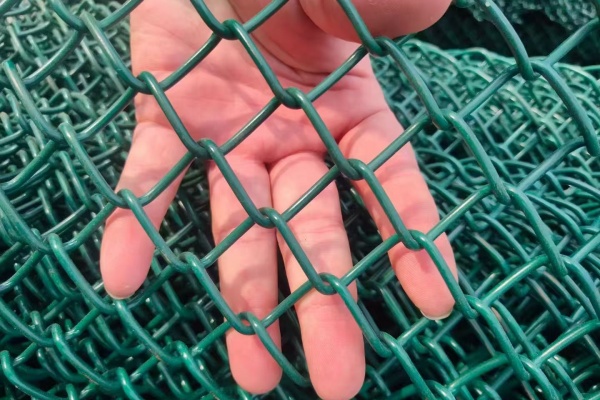

PVC-coated Chain Link Fence Mesh consists of a steel wire core with a protective PVC layer. The coating adds another barrier between the steel wire and the surrounding environment while providing a colored finish.
Green and black are widely used colors because they can blend well with gardens, landscaping, sports areas, and outdoor properties. PVC-coated mesh is especially useful when appearance and additional surface protection are both important.
For more information about this type of surface treatment, PVC Coated Chain Link Fence can be selected for projects requiring coated wire and a finished colored appearance.
Chain Link Fence Mesh is available in many specifications because fencing requirements vary from one project to another. The most important parameters include mesh opening, wire diameter, fence height, roll length, edge finish, and surface treatment.
It is important to evaluate mesh opening and wire diameter together. A small mesh opening with a relatively heavy wire can provide a denser and stronger barrier, while a larger opening may be suitable where visibility and airflow are more important.
The structure of Chain Link Fence Mesh is simple, but several details influence the final performance of the fence. The woven steel wires form the diamond pattern, while the fence is normally supported by steel posts and tension components.
For a complete fencing system, the mesh may be combined with line posts, corner posts, end posts, tension wire, tension bars, clamps, gates, and other accessories.
The support structure should be selected according to fence height, mesh weight, wind conditions, and the application of the site. A strong mesh cannot perform properly if the supporting posts are undersized or poorly installed.

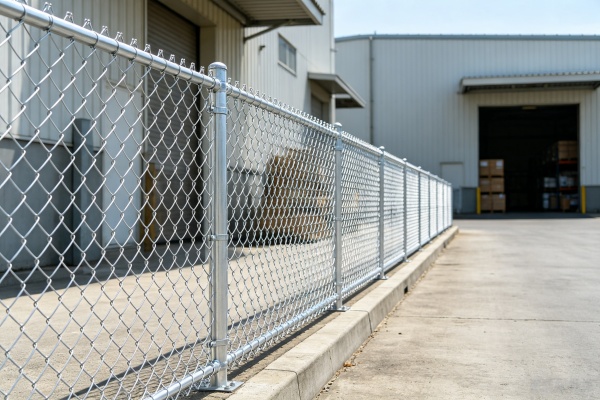

Factories, warehouses, logistics yards, storage areas, and construction sites often use Chain Link Fence Mesh to define property boundaries and control access.
When greater mechanical strength and heavier-duty construction are required, Industrial Chain Link Fence can be selected according to the project specification.

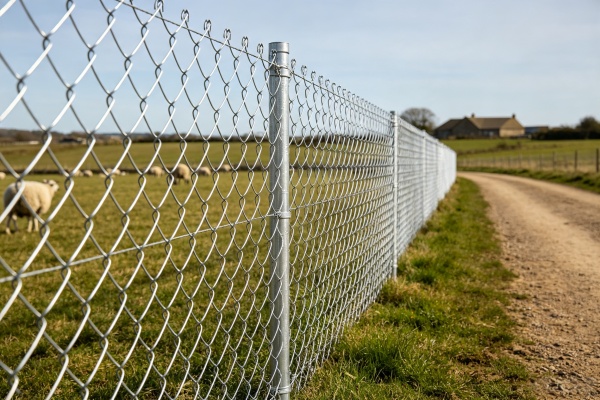

Chain Link Fence Mesh is suitable for enclosing farms, equipment storage areas, agricultural land, and service areas. Its open structure allows sunlight and airflow to pass through while providing a visible boundary.

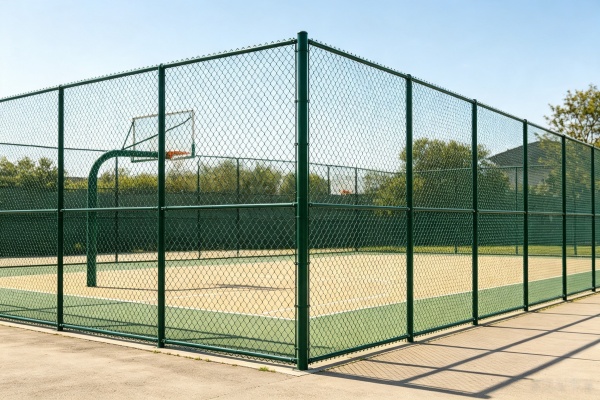

Sports facilities often need fencing that provides protection without blocking visibility. The diamond-shaped structure allows players and spectators to see through the fence while helping keep balls and equipment inside the designated area.
For sports projects, the mesh size, wire diameter, fence height, and supporting structure should be selected according to the specific sport and site conditions.
For houses, gardens, landscaped properties, and private yards, Chain Link Fence Mesh offers a simple and economical way to create a boundary. PVC-coated options can provide a more decorative appearance while maintaining the basic advantages of chain link fencing.
The installation environment should always be considered before choosing the wire and coating. Outdoor fences may be exposed to rain, humidity, sunlight, dust, temperature changes, and coastal conditions.
In humid regions, galvanized or PVC-coated wire can help improve corrosion resistance. In coastal locations, buyers should pay particular attention to the surface protection of both the mesh and the supporting components.
For Southeast Asian markets, where many areas experience high humidity, heavy rainfall, and strong sunlight, selecting the appropriate coating and maintaining the complete fencing system can have a significant effect on service life.
The first step is to determine what the fence needs to achieve. A residential garden fence does not normally require the same specification as an industrial perimeter fence.
Wire diameter affects the strength, rigidity, weight, and overall durability of the mesh. Heavier wire is generally preferred for applications that require greater resistance to impact or long-term heavy use.
Mesh opening affects visibility, airflow, material consumption, and the density of the barrier. Smaller openings create a denser mesh, while larger openings allow more visibility and ventilation.
The surface treatment should match the installation environment. Galvanized wire is widely used for general outdoor applications, while PVC coating can provide additional surface protection and a choice of colors.
Do not evaluate the mesh separately from the supporting structure. Posts, clamps, tension wires, gates, and other accessories should have suitable strength and corrosion resistance for the same project environment.
Good installation helps the mesh maintain its shape and performance over time. The fence line should be measured before installation, and the positions of end posts, corner posts, and line posts should be planned carefully.
Posts need to be firmly fixed because the mesh must be stretched between supporting points. During installation, the mesh should be tensioned evenly to maintain a consistent diamond pattern.
If the mesh is stretched too tightly, the openings may become distorted. If it is too loose, the fence can look uneven and may not provide the desired level of stability.
The bottom of the mesh should also be installed according to the site conditions. Leaving an appropriate clearance can reduce contact with soil and standing water, while some applications may require the mesh to be fixed closer to the ground.
Chain Link Fence Mesh is suitable for both standard and customized projects. A manufacturer can normally adjust the product according to the customer's technical requirements.
For large projects, it is recommended to confirm the complete specification before production. This should include mesh size, wire diameter, coating requirements, roll dimensions, quantity, packaging, and any required fencing accessories.
Chain Link Fence Mesh normally requires little maintenance, but regular inspection can help prevent small problems from becoming larger repairs.
In coastal or highly humid environments, more frequent inspection may be useful because corrosion can develop faster than in dry inland locations.
Chain Link Mesh generally refers to the woven mesh material itself, while Chain Link Fence can refer to the complete fencing system that includes the mesh, posts, tension components, gates, and other accessories. In everyday industry communication, the two terms are sometimes used interchangeably.
Yes. Galvanized and PVC-coated Chain Link Fence Mesh are widely used outdoors. The appropriate surface treatment should be selected according to the local climate and expected service conditions.
Yes. Mesh opening, wire diameter, height, roll length, edge finish, coating, and color can be customized for different projects.
50 mm is a common choice for many general fencing applications, but the correct mesh opening depends on the required security, visibility, airflow, and project specifications.
Chain Link Fence Mesh is a flexible and practical fencing material that can be used in industrial, commercial, agricultural, sports, construction, residential, and garden applications. Its simple woven structure provides a useful combination of strength, visibility, ventilation, and easy installation.
When choosing Chain Link Fence Mesh, buyers should look beyond the mesh opening alone. Wire diameter, surface treatment, fence dimensions, support structure, installation environment, and accessory quality all influence the final performance of the fencing system.
For outdoor projects in Southeast Asia and other humid climates, selecting suitable galvanized or PVC-coated wire and using properly protected supporting components can help the fence maintain reliable performance for many years.
