What Is Security Chain Link Fence?

Security Chain Link Fence is a woven wire fencing system designed for perimeter protection, access control, and boundary security. It uses the familiar diamond-shaped mesh structure of chain link fencing but is usually selected with specifications that match higher security requirements.

The basic idea is simple: the mesh creates a visible physical barrier while still allowing airflow and visibility. Depending on the project, the fence can be combined with stronger posts, smaller mesh openings, increased fence height, gates, top extensions, or other perimeter protection components.

Compared with a standard Chain Link Fence, a security application normally requires more attention to the complete fencing system. The wire mesh is important, but the posts, rails, tension system, gates, and installation method also affect the final level of protection.

Where Is Security Chain Link Fence Used?

Security Chain Link Fence can be used in many locations where access needs to be controlled or a property boundary needs stronger physical protection.

Industrial Facilities

Factories, production facilities, warehouses, and storage yards often need a clear perimeter to control access and separate restricted areas. For these projects, an Industrial Chain Link Fence system may be selected with specifications designed for larger sites and more demanding working environments.

Construction and Storage Areas

Construction sites and storage yards may use security fencing to define working areas, control entry, and protect equipment or materials.

The specification should depend on whether the installation is temporary or intended for long-term perimeter protection.

Commercial Properties

Commercial properties may use security fencing around buildings, parking areas, storage sections, and service zones. The fence can help separate public and restricted areas without creating a completely solid barrier.

Infrastructure and Utility Areas

Security fencing can also be used around equipment, utility facilities, and infrastructure areas where unauthorized access needs to be limited.

What Makes a Chain Link Fence More Secure?

Security is not determined by one single specification. A stronger fencing system usually comes from combining several elements correctly.

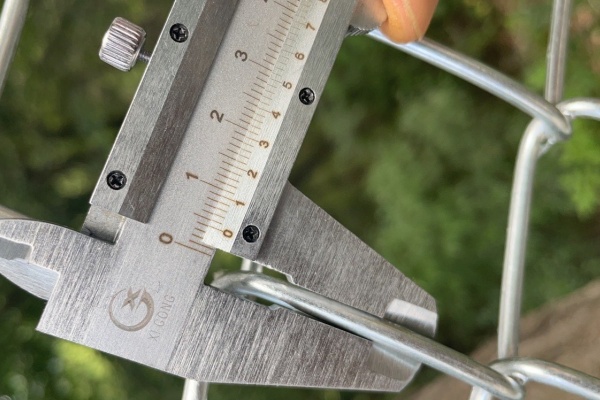

Wire Diameter

Wire diameter has a direct effect on the strength of the mesh. Thicker wire generally provides better resistance to deformation and physical impact.

However, thicker is not automatically better for every project. The correct wire diameter should be selected according to the fence height, mesh opening, expected risk, and installation environment.

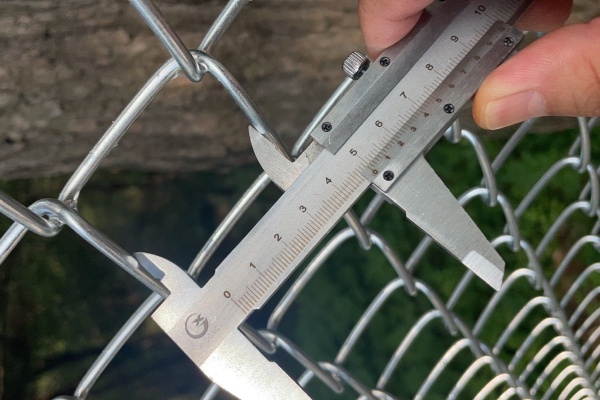

Mesh Opening

The mesh opening is another important factor. A smaller diamond opening can make it more difficult for objects to pass through the fence and can provide better containment.

Larger mesh openings provide better visibility and airflow, so the correct choice depends on the purpose of the security system.

Fence Height

Fence height can also affect perimeter protection. Higher fencing creates a more significant physical boundary, especially for industrial sites and restricted areas.

When increasing fence height, the supporting structure should also be upgraded. A taller mesh without suitable posts and tension components may not provide the expected stability.

Posts and Support Structure

A security fence is only as reliable as the structure supporting it. End posts, corner posts, line posts, rails, and tension components should all be selected to match the fence specification.

For large projects, the complete fencing system should be considered instead of purchasing the mesh separately without confirming the installation structure.

Galvanized or Coated Security Chain Link Fence?

The choice between galvanized and coated fencing depends mainly on the environment, appearance requirements, and expected service conditions.

Galvanized Surface

Galvanized Chain Link Fence is commonly used for perimeter and security applications because the zinc coating provides corrosion protection while maintaining the traditional metallic appearance of the wire.

It can be a practical choice for factories, warehouses, industrial yards, and other projects where appearance is not the main consideration.

Coated Surface

For projects requiring a colored appearance or an additional outer protective layer, PVC Coated Chain Link Fence can be considered.

Coated fencing may be useful in commercial areas, residential properties, and projects where the fence needs to blend more naturally into the surrounding environment.

For either option, the actual wire structure and coating specification should be confirmed before production. Two fences with similar appearances can have different wire diameters, zinc protection levels, or coating thicknesses.

How to Choose the Right Security Chain Link Fence?

1. Start with the Actual Security Requirement

Before selecting wire diameter or mesh size, first determine what the fence is expected to do.

• Is it mainly for property boundary marking?
• Does it need to control access?
• Does it need to protect equipment or materials?
• Is the area exposed to frequent public access?
• Is the fence part of a larger security system?

The answers to these questions will help determine the correct specification.

2. Confirm Wire Diameter and Mesh Opening

These two specifications should be considered together. A smaller mesh opening and thicker wire can provide a stronger physical barrier, but they also increase material usage.

For project purchasing, it is better to define the required protection level first and then select the most suitable specification instead of simply choosing the heaviest available mesh.

3. Consider the Installation Environment

For Southeast Asian markets, security fencing may be exposed to high humidity, heavy rainfall, strong sunlight, and in coastal locations, salt in the air.

The surface treatment should be selected according to the local environment. A fencing system installed in a dry inland location may require a different level of corrosion protection from one installed near the coast.

4. Do Not Ignore the Fence System

The mesh itself is only one part of the project. Posts, rails, tension wires, fittings, and installation quality all influence the final performance.

A properly selected mesh installed on an unsuitable support system may still result in poor stability.

Black Security Chain Link Fence for Commercial Projects

In some commercial and residential projects, security is required but the fence should also have a cleaner appearance.

Black Chain Link Fence can provide a darker and more neutral appearance while maintaining the open structure of traditional chain link mesh.

The color itself does not increase security. The actual protection level still depends on the wire diameter, mesh opening, fence height, support system, and installation quality.

Custom Sizes and Security Specifications

Security Chain Link Fence can be customized according to the requirements of different projects.

• Different wire diameters
• Different mesh openings
• Customized fence heights
• Different roll lengths
• Galvanized or coated surface options
• Different post specifications
• Top rails and tension systems
• Customized gate configurations
• Different edge finishing options

Before production, it is recommended to prepare a clear specification sheet that includes the mesh wire diameter, mesh opening, fence height, roll length, surface treatment, post requirements, and installation environment.

Maintenance Tips for Security Chain Link Fence

A security fence should be inspected regularly because small problems can affect the overall perimeter system.

• Check the mesh for cuts or deformation.
• Inspect posts for movement or corrosion.
• Check tension wires and rails.
• Inspect gates and connection points.
• Remove vegetation growing into the mesh.
• Check the fence after strong winds or severe weather.
• Repair damaged sections as soon as possible.

For large industrial or commercial sites, scheduled inspections can help identify problems before they affect the overall security of the perimeter.

Frequently Asked Questions About Security Chain Link Fence

Is chain link fence suitable for security applications?

Yes. Chain link fencing can be used for security and perimeter protection when the wire diameter, mesh opening, fence height, posts, and supporting components are selected according to the project's requirements.

Does a smaller mesh opening provide better security?

A smaller mesh opening can provide better containment and make it more difficult for objects to pass through the fence. However, the overall security level still depends on the complete fencing system.

Can Security Chain Link Fence be customized?

Yes. Wire diameter, mesh opening, fence height, surface treatment, roll length, and supporting components can be adjusted according to project requirements.

Related Chain Link Products

• Chain Link Fence
• Galvanized Chain Link Fence
• PVC Coated Chain Link Fence
• Industrial Chain Link Fence
• Black Chain Link Fence

Conclusion

Security Chain Link Fence is a practical option for projects that need perimeter protection, access control, and a visible physical boundary.

The key is to look at the complete fencing system rather than focusing only on the wire mesh. Wire diameter, mesh opening, fence height, surface treatment, posts, rails, tension components, and installation quality should all match the actual security requirements.

For projects in Southeast Asia, environmental conditions should also be considered from the beginning. High humidity, strong rainfall, sunlight, and coastal exposure can affect long-term fencing performance. Choosing the correct materials and specifications at the start can help reduce maintenance and provide more reliable perimeter protection over time.
