What Height Chain Link Fence Should I Use Choosing the Right Chain Link Fence Height

Choosing the right chain link fence height is one of the first decisions to make when planning a fencing project. A fence that is too low may not provide enough separation or security, while a fence that is unnecessarily high can increase material and installation costs. The best height depends mainly on the purpose of the fence, the site conditions, and the level of security required.

For this reason, there is no single height that works for every project. Whether you are fencing a garden, farm, factory, sports facility, or commercial property, the fence height should be selected according to the actual application.

Common Chain Link Fence Heights

Chain link fence is available in many different heights. Common options include around 1 m, 1.2 m, 1.5 m, 1.8 m, 2 m, 2.4 m, and 3 m. Higher heights can also be produced when required by a specific project.

The final choice should not be based only on what is commonly available. It is better to consider what the fence needs to prevent, protect, contain, or separate.

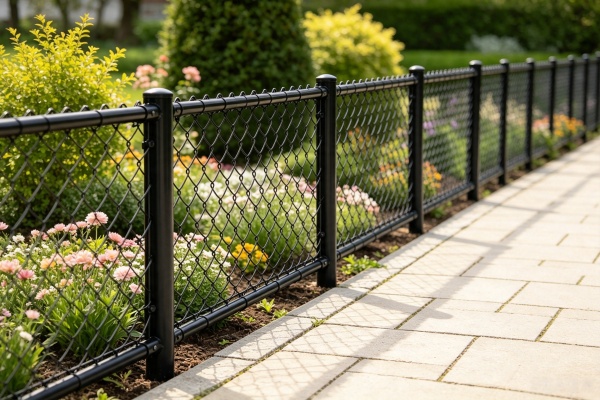

1 m to 1.2 m Fence Height

A lower fence is often suitable for gardens, landscaping areas, walkways, and simple property boundaries. It can create a clear physical boundary without making the area feel enclosed.

This height may also be useful where security is not the main purpose and the fence is mainly intended to separate different areas.

1.5 m to 1.8 m Fence Height

A height between 1.5 m and 1.8 m is commonly considered for residential properties, general property boundaries, gardens, and some commercial areas.

This range provides more separation than a low fence while remaining relatively easy to install and maintain. For many general fencing projects, it offers a practical balance between visibility, cost, and protection.

2 m to 2.4 m Fence Height

When stronger perimeter protection is required, a taller Chain Link Fence is often a better choice.

Fences around 2 m to 2.4 m high are commonly used for factories, warehouses, construction sites, industrial properties, storage areas, and commercial facilities.

A taller fence makes unauthorized access more difficult and can provide a stronger visual boundary around the property.

3 m or Higher Fence Height

Very tall fencing is normally selected for applications where security, containment, or sports requirements justify the additional height.

Sports facilities, industrial sites, high security areas, and certain large perimeter projects may require fencing around 3 m high or even higher.

When using a tall fence, the supporting posts and framework become especially important. A higher fence is exposed to greater wind loads, so the post size, spacing, foundation depth, and tensioning system should be considered together with the mesh.

Choosing Chain Link Fence Height by Application

The easiest way to select the right height is to start with the purpose of the fence.

Residential Properties

For residential boundaries and gardens, approximately 1.5 m to 1.8 m is often a practical range. The final height can be adjusted according to privacy, property layout, local requirements, and the desired appearance.

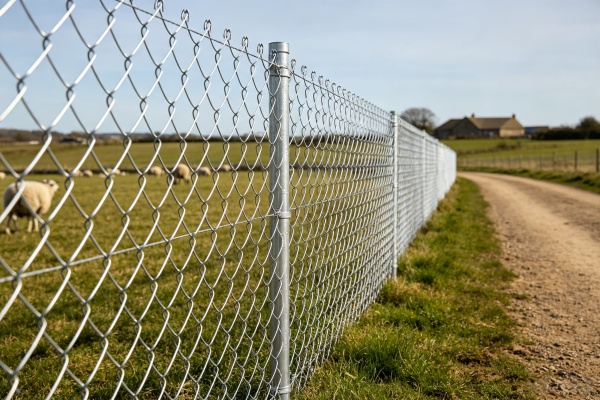

Farms and Agricultural Areas

Farm fencing can use different heights depending on the animals, crops, and property layout. A simple boundary may require a lower fence, while livestock areas may need a taller fence to reduce the possibility of animals pushing or jumping over it.

The mesh opening and wire diameter should also be selected according to the type of animals being contained.

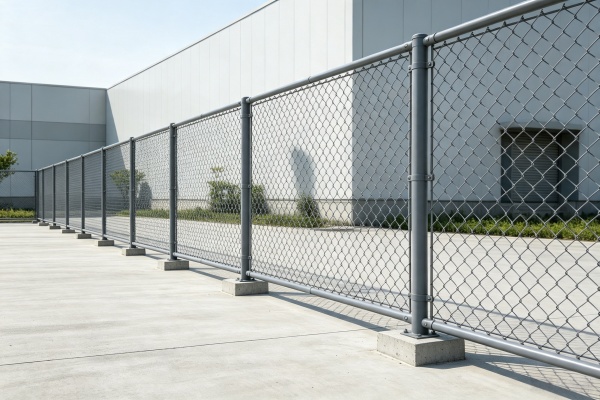

Factories and Warehouses

For factories, warehouses, and industrial properties, a height of around 2 m to 2.4 m is commonly considered for perimeter fencing.

If additional security is required, the fence can be combined with barbed wire or other security systems at the top.

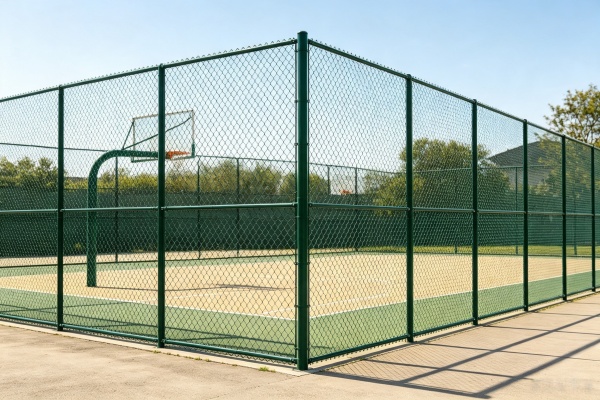

Sports Facilities

Sports applications often require taller fencing because the fence must help keep balls within the playing area and separate players from surrounding spaces.

Tennis courts and other sports facilities may use different fence heights depending on the court layout, ball type, surrounding structures, and project requirements. For these applications, Chain Link Fencing is often selected because its open structure provides visibility and airflow.

Fence Height Is Not the Only Important Specification

A common mistake is choosing a fence based only on height. In practice, the performance of a fence depends on several specifications working together.

Mesh opening, wire diameter, coating, post size, post spacing, and foundation design can all affect the final result.

For example, a 2 m high fence made with heavier wire can have significantly different strength from a 2 m high fence made with lighter wire.

When selecting Chain Link Mesh, it is therefore important to specify the complete construction rather than only saying that a 2 m fence is required.

How Wind Conditions Affect Fence Height

Wind is an important consideration for tall chain link fencing, especially in open areas and exposed locations.

As fence height increases, the supporting structure needs to handle greater wind forces. This is particularly important for large industrial sites, sports facilities, coastal areas, and locations with strong seasonal winds.

For taller fencing, stronger posts, suitable spacing, secure foundations, and proper tensioning can help improve the stability of the complete system.

Can Chain Link Fence Height Be Customized

Yes. Chain link fence does not have to follow only standard heights.

Manufacturers can normally produce customized heights according to project requirements. Customers may also specify the mesh opening, wire diameter, coating, color, roll length, and edge configuration.

For example, a project may require a 2.5 m high fence with a 50 mm mesh opening and a specific wire diameter. Providing these specifications before production helps the manufacturer produce the mesh according to the actual installation requirements.

How to Choose the Right Height

Before ordering, consider these basic questions:

• What is the main purpose of the fence?
• Does the fence need to contain people, animals, equipment, or sports balls?
• Is security or simple separation the main requirement?
• Will the fence be installed in an open or windy location?
• Does the local project require a specific minimum or maximum height?
• Will additional security wire be installed above the fence?
• What post size and foundation are suitable for the selected height?

Answering these questions first makes it much easier to select a practical fence height and avoid unnecessary material costs.

Conclusion

The right chain link fence height depends on the application rather than one universal standard. Lower fences are suitable for gardens and simple boundaries, medium heights work well for many residential and general property applications, while taller fences are commonly used for industrial, sports, and higher security projects.

When choosing fence height, always consider the mesh opening, wire diameter, coating, posts, foundation, and local wind conditions as part of the complete fencing system. A properly matched specification can provide better stability, easier installation, and reliable long term performance.
