What Are Standard Chain Link Fence Sizes

Chain link fence is available in a wide range of sizes, so there is no single size that fits every project. When people talk about standard chain link fence sizes, they usually mean the combination of fence height, mesh opening, wire diameter, and roll length. Choosing the right combination is important because each specification affects the strength, security, appearance, and installation cost of the fence.

Common Chain Link Fence Heights

Fence height is normally selected according to the purpose of the project. For residential gardens and simple boundaries, a lower fence may be enough. Industrial sites, warehouses, sports facilities, and security projects often require a taller fence.

Common heights include approximately 1 m, 1.2 m, 1.5 m, 1.8 m, 2 m, 2.4 m, 3 m, and higher customized heights. The actual available size can vary depending on the manufacturer and project requirements.

Typical Applications by Fence Height

• 1 m to 1.2 m for gardens and low boundary fencing
• 1.5 m to 1.8 m for residential and general property fencing
• 2 m to 2.4 m for factories, warehouses, and perimeter fencing
• 3 m or higher for sports facilities and higher security requirements

For projects where additional security is required, the fence height can also be combined with barbed wire or other security systems. The correct height should always be selected according to the actual site conditions rather than simply choosing the tallest option.

Common Chain Link Mesh Sizes

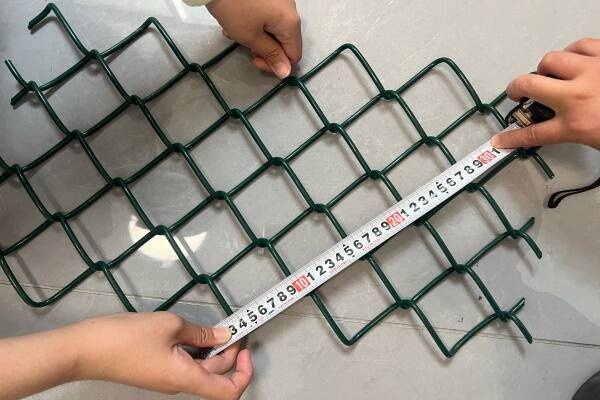

The mesh opening is another important specification. It describes the distance between the wires that form the diamond pattern of the fence.

Common mesh openings include approximately 25 mm, 40 mm, 50 mm, 60 mm, and 75 mm. A smaller opening generally provides a tighter barrier, while a larger opening can reduce material consumption and may be suitable for general boundary applications.

Chain Link Mesh with a 50 mm opening is one of the commonly used configurations for general fencing, industrial areas, and security applications.

Choosing the Right Mesh Opening

• Small mesh openings are useful where a tighter barrier is required.
• Medium mesh openings are suitable for many general fencing projects.
• Larger mesh openings can be considered for agricultural and simple boundary applications.

The right mesh size also depends on what needs to be contained or kept outside the fence. For example, animal fencing may require a different opening from a factory security fence.

Chain Link Wire Diameter

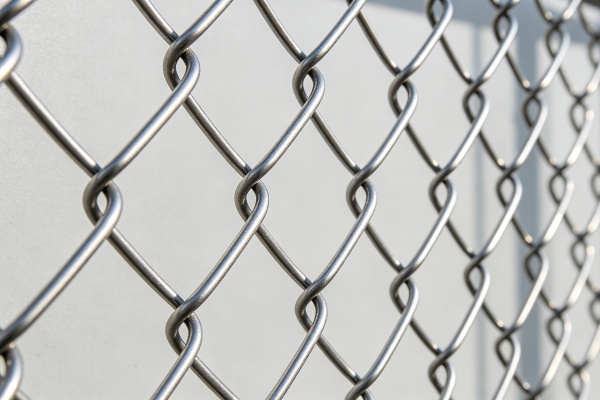

Wire diameter has a direct influence on the strength and weight of the fence. Common wire diameters can range from around 1.6 mm to more than 4 mm, depending on the application and required performance.

For general residential or light duty fencing, lighter wire can often be sufficient. Industrial fencing, security fencing, and large perimeter projects normally benefit from heavier wire because it provides greater resistance to deformation.

It is important to compare the actual wire diameter rather than relying only on gauge numbers. Gauge systems can vary between markets, while the diameter in millimeters gives a more direct specification for production and quality control.

Standard Chain Link Fence Roll Length

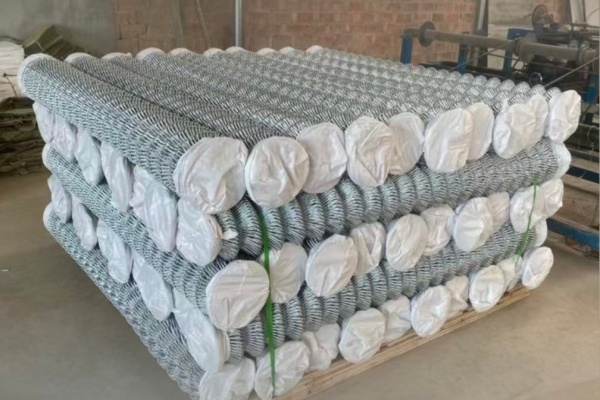

Chain link fence is commonly supplied in rolls to make transportation and installation easier. Roll length can vary according to the market, fence height, wire diameter, and customer requirements.

Many projects use rolls around 15 m or 25 m long, but customized roll lengths can also be produced. Before ordering, it is useful to calculate the total perimeter and consider the installation method so that the number of rolls can be planned accurately.

How Height Mesh Size and Wire Diameter Work Together

One of the most common mistakes when purchasing Chain Link Fence is looking at only one specification.

For example, a 2 m high fence with a small mesh opening and heavy wire will perform very differently from a 2 m high fence with a larger opening and lighter wire. The overall fence specification should therefore be considered as a combination of height, mesh size, wire diameter, coating, and supporting structure.

Galvanized and PVC Coated Size Options

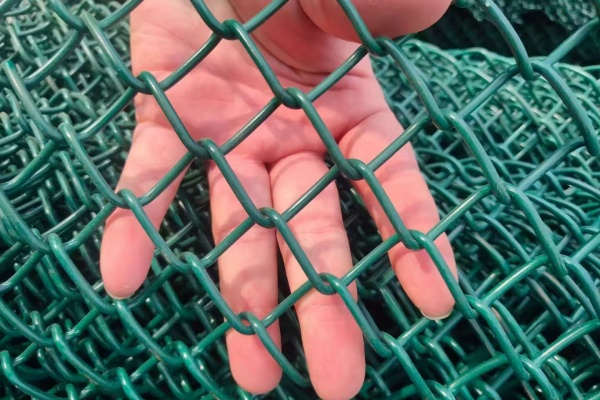

Standard dimensions are available for both galvanized and PVC coated products. Galvanized chain link fencing is commonly selected for industrial, agricultural, and general perimeter projects, while PVC coated products are often chosen where appearance and additional surface protection are important.

Chain Link Fencing can also be customized according to the project, including fence height, mesh opening, wire diameter, coating, color, and roll length.

Custom Chain Link Fence Sizes

Not every project needs a standard specification. A manufacturer can normally adjust the dimensions according to the application and installation requirements.

For example, a customer may require a 2.5 m high fence with a 50 mm mesh opening and a specific wire diameter. Other projects may require special roll lengths, PVC colors, or heavier galvanized wire.

Before production, it is best to confirm all specifications in writing, including material, wire diameter, mesh opening, fence height, coating, color, roll length, and quantity. This helps avoid misunderstandings and ensures that the finished fence matches the installation requirements.

Conclusion

Standard chain link fence sizes normally include several combinations of height, mesh opening, wire diameter, and roll length. The most suitable specification depends on the purpose of the fence, the installation environment, and the required level of strength and security.

Instead of choosing a fence based on height alone, consider the complete specification as a system. A properly selected combination of mesh size, wire diameter, coating, height, and supporting posts can make the fence easier to install and more reliable in long term outdoor use.
