What Does 50x50 Mesh Mean in Chain Link Fence Understanding Chain Link Fence Mesh Size

When buying a Chain Link Fence, you may often see specifications such as 50x50 mm mesh. For someone who is not familiar with wire mesh products, this number can be confusing. In simple terms, 50x50 mm describes the size of each diamond-shaped opening in the woven fence mesh.

Understanding what 50x50 mesh means is important because mesh size affects the appearance, strength, visibility, material consumption and application of a chain link fence. It should also be considered together with wire diameter, fence height and surface coating.

What Does 50x50 Mesh Mean

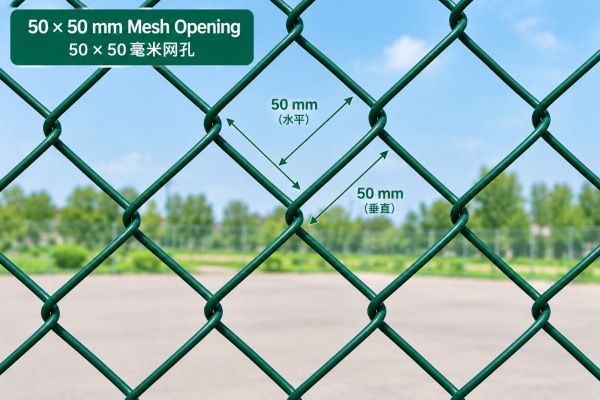

50x50 mesh means that the diamond-shaped opening of the chain link mesh measures approximately 50 mm by 50 mm. The measurement refers to the opening created by the woven wires, not the overall size of the wire itself.

For example, a specification of 50x50 mm mesh with a 2.8 mm wire diameter means the fence has approximately 50 mm diamond openings and is manufactured using 2.8 mm steel wire.

The mesh opening and wire diameter are two different specifications. Both should be clearly confirmed when ordering Chain Link Mesh.

How 50x50 Chain Link Mesh Is Made

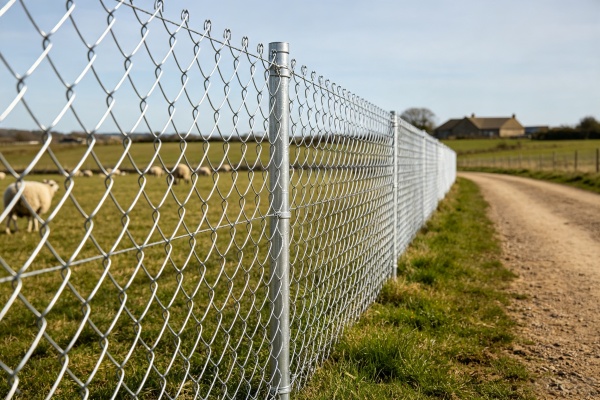

Chain link fence is produced by forming steel wire into a continuous diamond pattern. The wires are woven together to create a flexible mesh structure, which is then supplied in rolls or prepared for installation with posts and other fence components.

During production, the wire diameter, mesh opening, fence height and roll length can all be controlled according to the required specification. This makes 50x50 mesh a practical standard for many general fencing projects.

Why 50x50 Mesh Is Commonly Used

50x50 mm is one of the most commonly requested chain link mesh sizes because it provides a useful balance between visibility, strength and material cost.

The opening is small enough to create a continuous boundary while still allowing people to see through the fence. At the same time, it does not normally require as much wire as a much smaller mesh opening.

For this reason, 50x50 mesh is frequently used for factories, warehouses, gardens, residential boundaries, sports areas, construction sites and general perimeter fencing.

50x50 Mesh and Wire Diameter

Mesh size alone does not determine the strength of a chain link fence. Wire diameter is equally important.

A 50x50 mm fence made with 2.0 mm wire will have different performance from one made with 2.8 mm or 3.0 mm wire. A heavier wire generally provides a stronger and more rigid woven structure, although it also increases material consumption and weight.

Common combinations may include 50x50 mm mesh with 2.0 mm, 2.5 mm, 2.8 mm or 3.0 mm wire, depending on the application.

For industrial or security applications, it is therefore better to specify both the mesh opening and wire diameter rather than simply asking for 50x50 mesh.

Is 50x50 Mesh Suitable for Security Fencing

50x50 mesh can be used for many perimeter and security fencing applications, but the mesh size should not be considered by itself.

For a more secure fence system, the specification may also include a heavier wire diameter, greater fence height, stronger steel posts and appropriate fixing components. The installation environment and the level of protection required should determine the final combination.

For projects requiring tighter openings, a smaller mesh such as 40x40 mm or 25x25 mm may be considered. The choice depends on what the fence is intended to prevent or contain.

50x50 Mesh for Different Applications

Industrial and Commercial Areas

50x50 mesh is commonly used around factories, warehouses, storage yards and commercial properties. It provides a practical boundary while maintaining good visibility.

Residential and Garden Fencing

For gardens, houses and residential boundaries, 50x50 mesh offers an open appearance and can be combined with galvanized or PVC coated wire according to the required durability and appearance.

Sports Facilities

Chain link fencing with 50x50 mesh can also be used around sports areas. The final choice should take into account fence height, wire diameter and the type of sport being played.

Construction Sites

For construction site boundaries, 50x50 mesh can provide a simple and economical way to separate working areas and control access.

50x50 Mesh and Surface Coating

The same 50x50 mesh size can be manufactured using different wire coatings. Common options include electro galvanized wire, hot-dip galvanized wire and PVC coated wire.

Hot-dip galvanized wire is often selected when stronger corrosion protection is required. PVC coated wire adds a protective polymer layer and is available in common colors such as green and black.

The choice of coating should be based on the installation environment, expected service life and appearance requirements.

What Should Be Confirmed When Ordering 50x50 Mesh

• Mesh opening: 50x50 mm
• Wire diameter: for example 2.5 mm, 2.8 mm or 3.0 mm
• Wire material and coating
• Fence height
• Roll length
• Edge type and finishing
• Required quantity

For larger projects, it is also useful to confirm the zinc coating level or PVC coating specification, packaging method and loading requirements before production.

50x50 Mesh Does Not Mean 50 mm Wire

One common misunderstanding is thinking that 50x50 refers to the wire diameter. It does not. The 50x50 measurement describes the mesh opening, while the wire diameter is specified separately in millimeters.

For example, 50x50 mm mesh with 2.8 mm wire means a 50 mm diamond opening made from 2.8 mm steel wire. Keeping these two specifications separate helps prevent mistakes when comparing quotations from different suppliers.

Conclusion

50x50 mesh in chain link fence refers to a diamond-shaped mesh opening of approximately 50 mm by 50 mm. It is a widely used specification because it provides a practical balance of visibility, strength, material consumption and cost.

However, the best Chain Link Fencing specification depends on more than mesh size. Wire diameter, coating, fence height, installation conditions and the intended application should all be considered together.

If you are purchasing 50x50 chain link mesh for a specific project, providing the application and complete required dimensions to the manufacturer can help ensure that the final product matches the actual working conditions.
