Is Chain Link Fence Strong

Many buyers ask a simple question before choosing a fence Is chain link fence strong enough for my project The short answer is yes but the actual strength depends heavily on the specification.

A light garden fence and a heavy duty Chain Link Fence may look similar from a distance but their performance can be completely different. Wire diameter mesh size fence height surface treatment and the supporting structure all affect how strong the final fencing system will be.

From our experience as a manufacturer the biggest mistake is judging the strength of a fence only by looking at the mesh. A strong fence is a complete system. The mesh needs to match the posts rails tension wire and installation method. If one part of the system is too weak the overall fence performance will be affected.

What Makes Chain Link Fence Strong

The strength of chain link fencing mainly comes from the steel wire and the woven structure. The wire is twisted and woven into a continuous diamond pattern which creates a flexible but stable mesh.

Unlike a solid panel a woven fence can absorb a certain amount of impact through its flexible structure. When pressure is applied the mesh can move slightly instead of immediately breaking.

This does not mean every Chain Link Fencing product has the same strength. A fence made from thin wire with large mesh openings is designed for different applications from a heavy Industrial Chain Link Fence.

When evaluating fence strength there are several important specifications to consider.

Wire Diameter

Wire diameter is one of the most important factors affecting the strength of the fence.

Generally speaking thicker wire provides greater resistance to bending cutting and impact. It also increases the weight of the finished Chain Link Mesh because more steel is used during production.

A thinner wire may be suitable for Garden Chain Link Fence or other light duty applications. A heavier wire is normally more suitable for Industrial Chain Link Fence Security Chain Link Fence or Animal Chain Link Fence.

However thicker is not always better. Using a heavier wire than the project actually requires can increase material cost without providing much practical benefit.

Mesh Opening

Mesh opening also affects the overall strength and function of the fence.

A smaller diamond opening creates a denser structure. This can improve the ability of the fence to act as a barrier and may make climbing or passing objects through the fence more difficult.

Larger mesh openings are often used for general boundary fencing because they require less material and can provide a more economical solution.

For example a Farm Chain Link Fence may use a different mesh opening from a Security Chain Link Fence because the purpose of the fence is different.

Fence Height

Fence height is another factor that should be considered when discussing strength.

A higher fence experiences more wind pressure and may also require stronger posts and additional support. Simply increasing the height of the mesh without upgrading the supporting structure can create problems during long term use.

This is particularly important for Airport Chain Link Fence Perimeter Chain Link Fence and Sports Chain Link Fence where the fence may be significantly higher than a standard residential boundary.

The Woven Structure Provides Flexibility

One of the reasons chain link fence is widely used is that the woven structure combines strength with flexibility.

The mesh is often described as Diamond Mesh Fence Diamond Wire Mesh Fence or Woven Wire Mesh Fence because of the way individual wires are connected together.

When pressure is applied to a rigid welded panel the impact is concentrated in a smaller area. With a woven structure the force can spread across a larger section of the mesh.

This can make chain link fencing a practical option for areas where the fence may experience occasional impact.

For sports applications such as Tennis Court Chain Link Fence the flexibility of the mesh can help handle repeated contact from balls while maintaining a clear boundary around the playing area.

How Surface Treatment Affects Strength and Durability

Surface treatment does not normally make the steel wire physically stronger but it plays an important role in maintaining the strength of the fence over time.

If steel wire begins to corrode the wire diameter gradually becomes smaller and the structural strength can eventually be reduced.

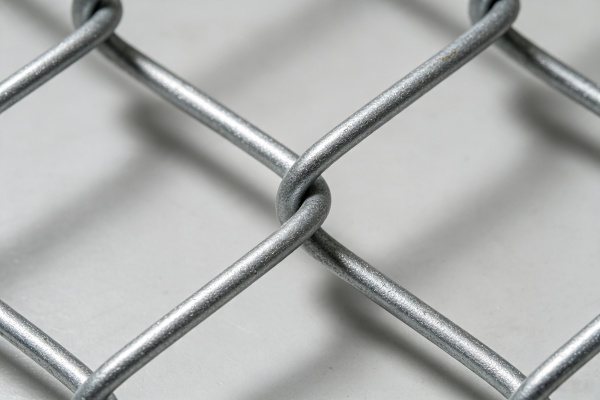

Galvanized Chain Link Fence

Galvanized Chain Link Fence uses a zinc coating to help protect the steel wire from corrosion.

This type of fence is widely used for outdoor projects because it provides a good balance between strength corrosion resistance and cost.

Galvanized Fence Mesh can be used around factories warehouses farms construction areas and general property boundaries.

The actual corrosion resistance depends on the quality and thickness of the zinc coating as well as the local climate and installation environment.

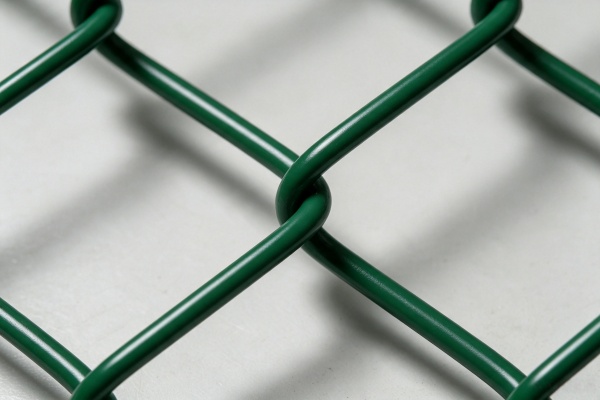

PVC Coated Chain Link Fence

PVC Coated Chain Link Fence uses a steel wire core with an additional protective coating around the surface.

The PVC layer can help reduce direct exposure to moisture while also providing color options.

Green Chain Link Fence is commonly used for gardens parks farms and sports facilities. Black Chain Link Fence is often selected for residential and commercial projects where appearance is important.

Plastic Coated Chain Link Fence should be checked carefully before purchase. The quality of the PVC coating and the thickness of the steel core are both important. A good looking coating cannot compensate for weak steel wire underneath.

Stainless Steel Chain Link Fence

Stainless Steel Chain Link Fence is generally selected for environments where corrosion resistance is a major concern.

Coastal areas industrial environments and locations with high humidity may require a higher level of material protection.

Stainless steel usually costs more than galvanized wire so it is most practical when the installation environment justifies the additional investment.

Posts and Supporting Structure Are Just as Important

A strong mesh alone cannot create a strong fence system.

The posts rails tension wires and fixing accessories all need to match the specification of the mesh.

For example installing heavy Chain Link Wire Mesh on lightweight posts may cause the posts to bend or move over time. On the other hand extremely heavy posts may not be necessary for a light Garden Chain Link Fence.

The correct approach is to balance the complete system.

For larger projects the following components should normally be considered together

• Fence mesh specification
• Wire diameter
• Mesh opening
• Fence height
• Post diameter
• Post thickness
• Rail specification
• Tension wire
• Foundation or post installation method

A properly designed Chain Link Fencing system should use compatible specifications instead of focusing on only one component.

Is Chain Link Fence Strong Enough for Security

Chain link fence can be used for security applications but the specification should match the required level of protection.

A basic fence designed for a garden is not the same as a Security Chain Link Fence used around an industrial property or restricted area.

Security applications may require thicker wire smaller mesh openings stronger posts and additional protection at the top of the fence.

For some projects the fence may also be combined with other perimeter protection systems depending on the security requirements.

The advantage of a chain link system is that the specification can be adjusted according to the level of protection needed.

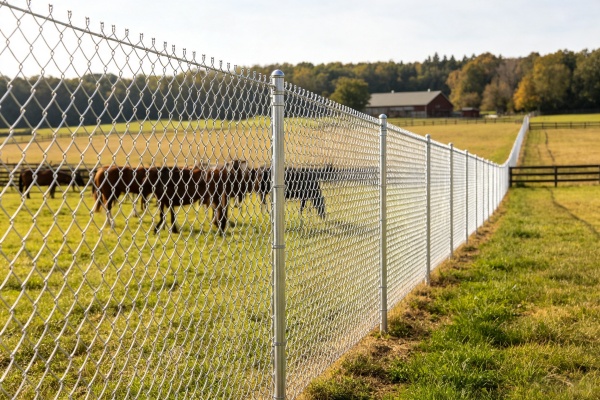

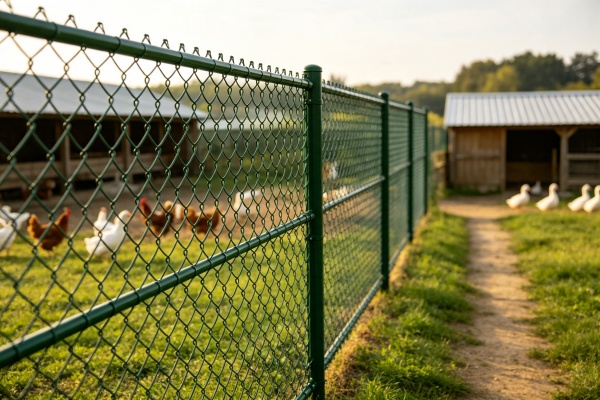

Chain Link Fence for Animals and Farms

Chain link fence can also be strong enough for farms and animal areas when the correct specification is selected.

Animal Chain Link Fence and Livestock Chain Link Fence should be designed according to the type and size of the animals.

Smaller animals may require smaller mesh openings while larger animals may place greater pressure on the fence and require heavier wire and stronger posts.

One common mistake is selecting the fence based only on the height. The strength of the wire and the supporting system may be even more important for animals that push or lean against the fence.

For long agricultural boundaries it is also important to consider the ground conditions. Soft soil or uneven terrain may require different installation methods to maintain the stability of the fence.

How Installation Affects Fence Strength

Even high quality Chain Link Mesh will not perform properly if it is installed incorrectly.

The mesh should be stretched with appropriate tension. If the mesh is too loose it can sag and move excessively. If it is stretched incorrectly excessive stress may be placed on the posts and fixing components.

Corner posts and end posts are particularly important because they handle much of the tension created during installation.

The post depth should also be suitable for the fence height soil conditions and local environment. Higher fences generally require stronger support.

For large industrial or security projects it is usually better to plan the complete installation system before ordering materials instead of selecting the mesh and accessories separately.

How to Choose the Right Strength

The easiest way to select the correct fence specification is to start with the application.

For Gardens and Residential Boundaries

A lighter specification may be enough when the main purpose is to define the property boundary or keep pets inside the area.

For Farms and Animal Areas

The wire strength mesh opening and fence height should match the type of animals and expected pressure on the fence.

For Industrial Areas

Industrial Chain Link Fence may require heavier wire stronger posts and a more robust supporting system.

For Security Applications

Security projects may require smaller mesh openings thicker wire higher fence heights and additional perimeter protection.

For Sports Facilities

Sports Chain Link Fence should be designed according to the type of sport expected impact and required fence height.

Conclusion

So is chain link fence strong The answer depends on the specification and the complete fencing system.

A properly selected Chain Link Mesh with the correct wire diameter mesh opening surface treatment posts and installation method can provide reliable performance for gardens farms factories sports facilities and security applications.

The key is not simply choosing the thickest wire or the highest fence. The best results usually come from matching the fence specification to the actual project environment.

Before buying it is worth confirming how the fence will be used what type of pressure it may experience what the local weather conditions are and how the supporting system will be installed.

When these details are considered together chain link fence can provide a strong flexible and practical solution for a wide range of fencing projects.
